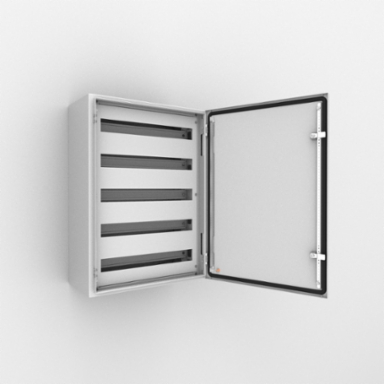

nVent Hoffman AC03025R5 Modular Chassis 280x210x98mm Light Gray Mild Steel Wall Mounted
- MPN: AC03025R5
- UPC: 783510113520
- PPN: HOF-AC03025R5
- UNSPSC: 39121321
CAD
$544.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Quickly and easily mount DIN-rail components to this chassis , both at the panel shops and in the field. This Modular Chassis, AC, AC03025R5 item measures 280x210x98mm with a material of Mild Steel, color Light Gray.
Features
- Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.
- Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
- Finish: RAL 7035 structured powder coating.
- Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
- Mounting requirements: To be assembled on MAS and ASR enclosures.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 250 |
| Works With | IEC |
| Material | Mild Steel |
| Color | Light Gray |
| Thickness (T) | 1.2 |
| Enclosure Material | Mild Steel |
| Row Quantity | 2 |
| Height (H) | 300 |
|---|---|
| Depth (D) | 98 |
| Product Family | Wall Mounted |
| Finish | Powder Coated |
| Color Code | RAL 7035 |
| Weight | 2.3 |
| Module Quantity | 16 |
