nVent Hoffman AC07050R5 Modular Chassis, 680x460x98mm, Mild Steel, Light Gray, Wall Mounted

MPN: AC07050R5
UPC: 783510113759
PPN: HOF-AC07050R5
UNSPSC: 39121321

$680.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

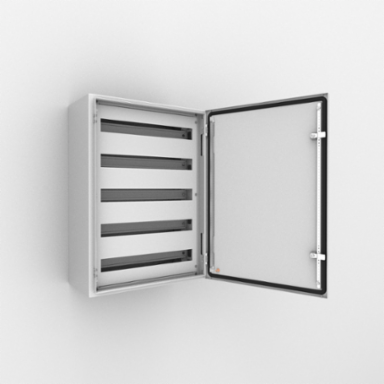

Quickly and easily mount DIN-rail components to this chassis , both at the panel shops and in the field. This Modular Chassis, AC, AC07050R5 item measures 680x460x98mm with a material of Mild Steel, color Light Gray.

Features

Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm. In stainless steel enclosure machining is required.
Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
Finish: RAL 7035 structured powder coating.
Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
Mounting requirements: To be assembled on MAS and ASR enclosures.
