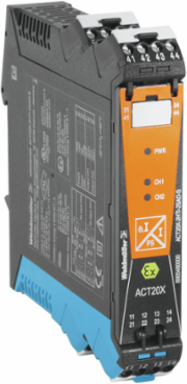

Weidmuller 8965480000 ACT20X Intrinsically Safe 2-Channel Temperature Converter, 4-20 mA Output
- MPN: 8965480000
- PPN: WDM-8965480000
CAD
$914.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

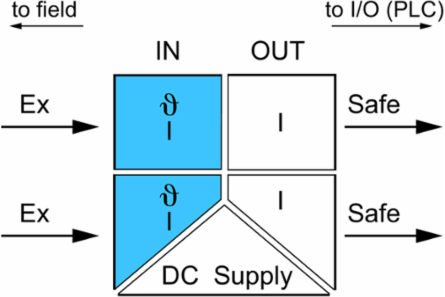

EX signal isolating converter, Ex-input: I,ϑ, Safe-output: 4-20mA, 2-channel
Documentation & Downloads
Specifications
Probability Of Failure
- MTBF
- 111 Years
- SIL in compliance with IEC 61508
- 2
SIL PAPERSIL certificate
Approvals
- ROHS
- Conform
UL File Number SearchE337701

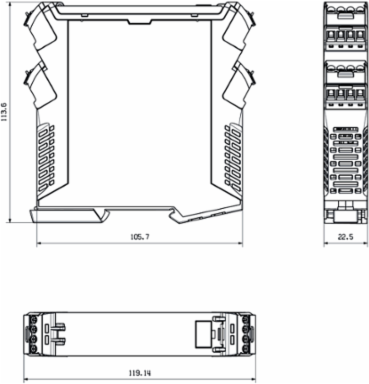

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 119.2 mm
- Depth
- 113.6 mm
- Net weight
- 180 g
Width (inches)0.886 inch
Height (inches)4.693 inch
Depth (inches)4.472 inch
Safety-Related Specifications Low Demand Mode
- Average Probability of Failure on Demand (PFD
- 3.96 x 10-4 (Tproof = 1 year), 6.5 x 10-4 (Tproof = 2 years), 1.41 x 10-4 (Tproof = 5 years)
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.25 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12
Rated Data Ul
- UL certificate
- E337701.pdf
Safety-Related Basic Specifications
- Demand mode
- High
- Demand response time
- Signal input: < 0.5 s (opto output), Temperature input: < 1.1 s (opto output)
- Device type
- B
- Hardware fault tolerance (HFT)
- 0
- Safe Failure Fraction (SFF)
- 90 %
- Total failure rate for dangerous detected failures (λ
- 367 FIT
- Total failure rate for safe detected failures (λ
- 0 FIT
- Safety category
- SIL 2
Demand rate3,000 s
Description of the "safe state"analogue Output ≤ 3.6 mA or output ≥ 21 mA
Diagnostic test interval30 s
Mean Time To Repair (MTTR)24 h
T3 Years
Total failure rate for dangerous undetected failures (λ61 FIT
Total failure rate for safe undetected failures (λ234 FIT
Probability of outage PFH6.1 x 10-8 h-1
Tender Specification Sheets
- Long specification

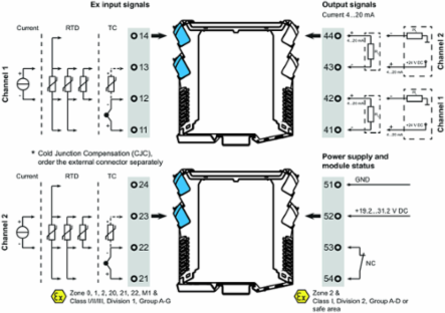

- Ex temperature transducer for RTD-/ TC temperature signals and DC current signals, 2-channel2-channel temperature transducer in 22.5 mm width with external power supply, for capturing and isolating RTD- / TC sensors and DC current signals 0(4)...20 mA from the Ex Zones 0, 1, 2. The outputs can be operated as either an active 0(4)...20 mA signal or as a passive 4...20 mA current loop. Status and error messages are available via a relay contact (NO). The component can be configured using standard FDT/DTM software. Add-on housing for TS35 rail mounting Dimensions: L/W/H 119.2/ 22.5/ 113.6Screw connection/ Nominal cross-section 2.5 mm2Protection degree: IP 20 Input / channel RTD: PT100, PT500, PT1000, Ni100, Ni120, Ni1000 TC- Type: B, E, J, K, N, R, S, T, U, L 0(4)...20 mA Output / channel active 0(4)...20 mA / 20..4 mA configurable passive 4...20 mA current loop 3.5...26 V DC Load / channel < 600 Ohm Accuracy < 0,1 % v.E. Temperature coefficient < 0,01% v.E./°C (Tu) Alarm output relay 1 NO contact 250 V AC / 30 V DC @ 2A safe zone 32 V AC @ 0.5 A/ 32 VDC @ 1 A Zone 2Auxiliary power 19...31.2 V DC Power loss approx. 3 W Ambient temperature range -20 °C...+60 °C Secure isolation EN 61010, 3-way isolation up to 2.6 kV AC/DC of all circuits against each otherWorking voltage 300 V AC/DC at overvoltage category II and pollution degree 2 Approvals cULus, ATEX IECEX, FM ATEX marking II 3 G ExnA nC IIC T4 ATEX characteristic data U0 = 8.7 V DC I0 = 18.4 mA DC P0 = 40 mW Type ACT20X-2HTI-2SAO-S

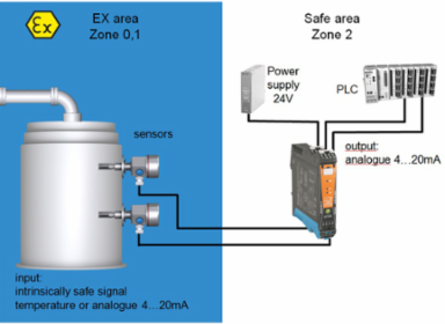

Short specificationEx- temperature transducer for RTD-/ TC temperature signals and DC current signals, 2-channel2-channel temperature transducer in 22.5 mm width with external power supply,for capturing and isolating RTD/TC sensor and DC current signals (0(4)...20 mA) from Ex zones 0,1,2. The outputs can be operated in the safe zone either as an active signal (0(4)...20 mA) or as a passive 4...20 mA current loop. Status and error messages are available via a relay contact (NO).The component can be configured using standard FDT/DTM software.
Alarm Output
- Alarm function

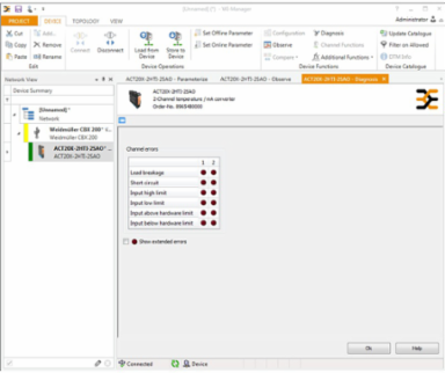

- Line interruption at the input, Short circuit at input, No supply voltage, Device error
- Nominal switching voltage
- ≤ 125 V AC / 110 V DC (safe area)≤ 32 V AC / 32 V DC (zone 2)
- Power rating
- ≤ 62.5 VA / 32 W (safe area)≤ 16 VA / 32 W (Zone 2)
TypeRelay, 1 NC (voltage-free)
Continuous current≤ 0.5 A AC / 0.3 A DC (safe zone), ≤ 0,5 A AC / 1 A DC (zone 2)
Classifications
- ETIM 6.0
- EC002919
- eClass 9.0
- 27-21-01-29
- eClass 10.0
- 27-21-01-29
ETIM 7.0EC002919
eClass 9.127-21-01-29
UNSPSC30-21-18-01
Output
- Type
- active (as current source) or passive (as current sink)
- Output signal limit
- 3.8…20.5 mA / 0…20.5 mA (dependent on range)
- load impedance current
- ≤ 600 Ω
Influence of load resistance≤ 0.01% of span / 100 Ω
Output current0…23 mA, configurable: 0…20 / 4…20 / 20…0 / 20…4 mA, configurable downscale (3.5 mA) ⁄ upscale (23 mA) @ error
Product Information
- Product information
- Weidmüller provides an extended guarantee period of 36 months for this device.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Voltage U
- 8.7 V DC
- Power P
- 40 mW
- Installation location
- Device installed in safe area, zone 2
Current I18.4 mA
MarkingII (1) G [Ex ia Ga] IIC/IIB/IIA, II (1) D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I
Insulation Coordination
- EMC standards
- DIN EN 61326, NE 21
- Rated voltage
- 300 V
Insulation voltage2.6 kV (input / output)
Input Ex
- Input current
- 0...20 mA, 4…20mA
- Line resistance in measuring circuit
- ≤ 50 Ω
- Temperature input range
- Configurable
Input resistance, current20 Ω + PTC 50 Ω
SensorRTD: PT10, PT20, PT50, PT100, PT250, PT300, PT400, PT500, PT1000, Ni50, Ni100, Ni120, Ni1000, Thermocouples: B, E, J, K, N, R, S, T ; in compliance with IEC 60584-1 and L, U in compliance with DIN43710
Typeintrinsically safe circuit, RTD, TC, DC (mA)
Temperatures
- Humidity
- 0...95 % (no condensation)
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -20 °C
- Storage temperature
- -20 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-20 °C...60 °C
Ratings Iecex/Atex/Cul
- ATEX certificate
- 10ATEX0020X.pdf
- Certificate No. (ATEX)
- KEMA10ATEX0020X
- Certificate no. (cULus)
- E337701
IEC Ex certificateIECEx certification
Certificate No. (IECEX)IECEXKEM09.0092X
General Specifications
- Configuration

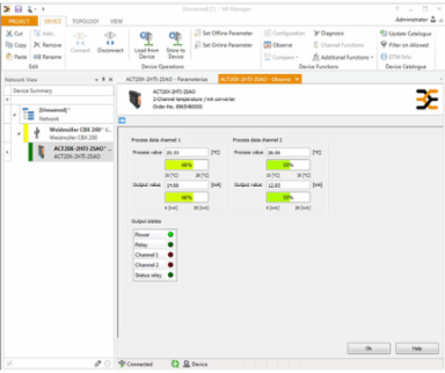

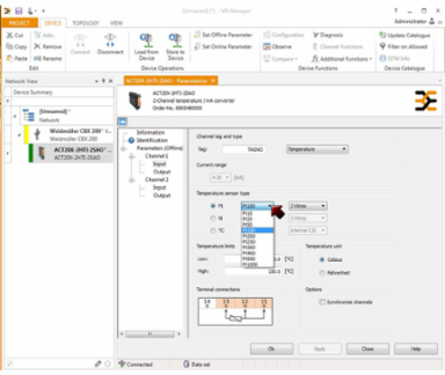

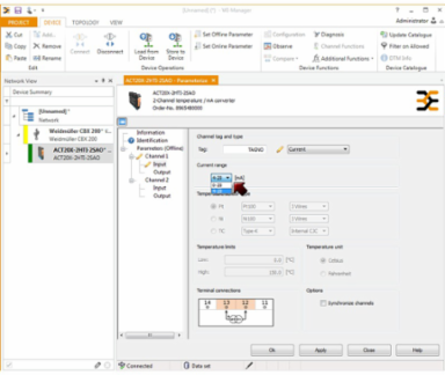

- With FDT/DTM software
- Type of connection
- Screw connection
- Step response time
- ≤ 400 ms (with current), ≤ 1 s (with temperature)
- Humidity
- 0...95 % (no condensation)
Voltage supply19.2…31.2 V DC
Power consumption≤ 1.4 W
Protection degreeIP20
