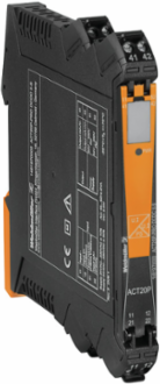

Weidmuller 1481970000 ACT20P-PRO DCDC II-S Signal Converter/Insulator, 24…230 V AC/DC, 130 g
- MPN: 1481970000
- PPN: WDM-1481970000
CAD
$580.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ACT20P, Signal converter/insulator, Signal converter/isolator, universal, 24…230 V AC/DC power supply
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.05 % of measuring range
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Rail
- TS 35
- Temperature coefficient
- ≤0,01% des Messbereichs⁄°C

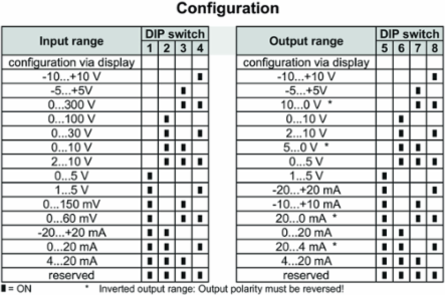

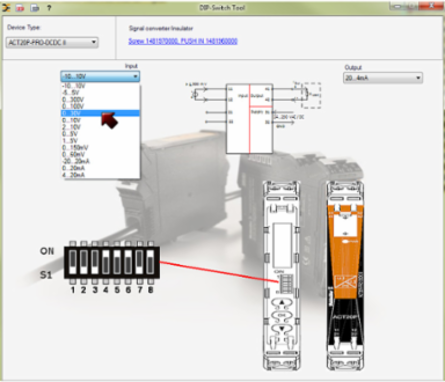

ConfigurationDIP switch, or via display and push-buttons
Power consumption≤2.3 W
Step response time≤50 µs
Voltage supply24…230 V DC ±20 %, 24…230 V AC ±10 % @ 48…62 Hz
Probability Of Failure
- MTBF
- 76 Years
Approvals
- ROHS
- Conform

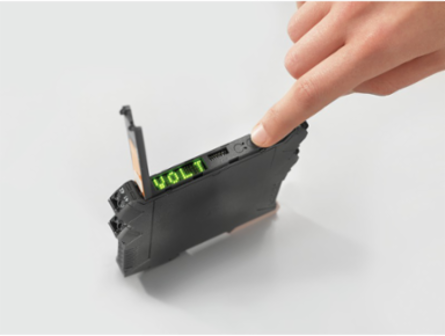

Display
- Type
- Dot-matrix display with ticker text, green
Display valuecurrent measured value, Configuration data

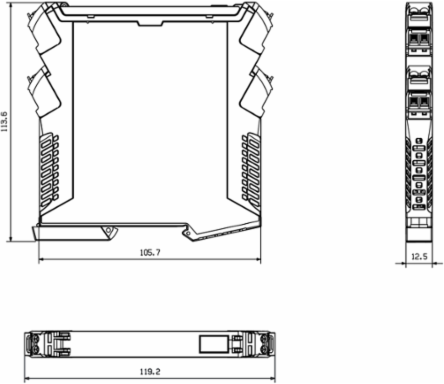

Dimensions And Weights
- Width
- 12.5 mm
- Height
- 119.2 mm
- Depth
- 113.7 mm
- Weight
- 130 g
Width (inches)0.492 inch
Height (inches)4.693 inch
Depth (inches)4.476 inch
Net weight130 g
Connection Data
- Type of connection
- Screw connection
- Tightening torque, max.
- 0.6 Nm
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
Tightening torque, min.0.4 Nm
Clamping range, rated connection2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 12

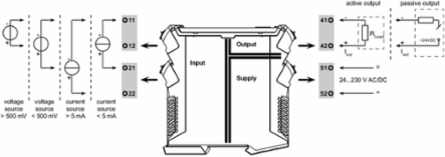

Input
- Number of inputs
- 1
- Input voltage
- configurable, ±40 mV…±300 V, Measuring range. min 40 mV
- Input current
- configurable, ± 0.1mA...± 100 mA
Input signalVoltage source, Current source
Input resistance, voltageapprox. 1 MΩ
Input resistance, current< 5 mA: approx. 100 Ω; >5 mA: approx. 5 Ω
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
Output
- Output voltage, note
- Adjustable, 0...±10 V
- Cut-off frequency (-3 dB)
- > 10 kHz/ < 10 Hz
- load impedance current
- ≤ 600 Ω
- Offset current
- 20 µA
Output currentAdjustable, 0...±20 mA
load impedance voltage≥ 1 kΩ
Offset voltage< 10 mV
Status indicatorGreen LED
Product Information
- Product information
- The universally configurable DC isolating amplifier ACT20P-PRO DCDC II isolates and converts analogue signals. An analogue input signal (current or voltage) is linearly converted into an analogue output signal (current or voltage) and galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation). Properties universal wide-range voltage supply universally configurable via DIP switch or via the LED display using control buttons Active or passive signal output Operating status display on a front panel LED Galvanic 3-way isolation between input, output and supply.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Marking
- II 3 G Ex nA IIC T4 Gc
Insulation Coordination
- EMC standards
- EN 60079-0, EN 60079-15, EN 61010-1, EN 61140, EN 61326-1, UL 61010-1, SN29500 for MTBF
- Impulse withstand voltage
- 5 kV (1.2/50 µs)
- Pollution severity
- 2
- Surge voltage category
- II
Galvanic isolation3-way isolator, between input ⁄ output ⁄ supply
Insulation voltage4 kVeff, input ⁄ output ⁄ power supply
Rated voltage600 V
Temperatures
- Operating temperature, max.
- 70 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...70 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate No. (ATEX)
- DEMKO15ATEX1397X

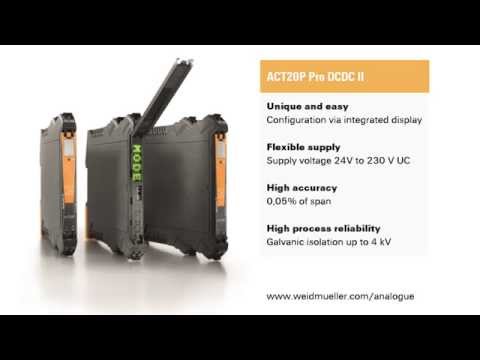

Loading video…
