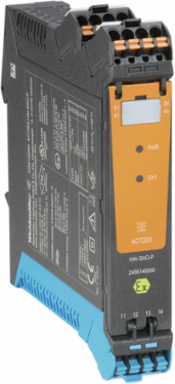

Weidmuller 2456200000 ACT20X Signal Isolating Converter, 4-20mA Output, Adjustable Temp -200...+800 C
- MPN: 2456200000
- PPN: WDM-2456200000
CAD
$936.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

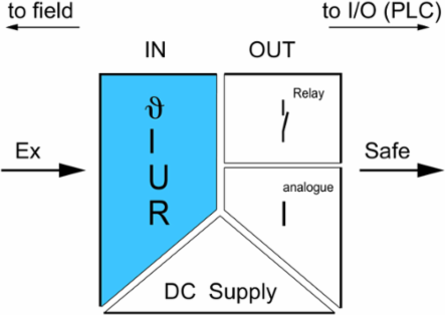

EX signal isolating converter, Ex-output: U, I, R,ϑ, Safe-output: 4-20mA/ relay, 1-channel
Documentation & Downloads
Specifications
Probability Of Failure
- SIL PAPER
- SIL certificate
Digital Output
- Type
- Relay, 1 NO / NC contact
- Power rating
- ≤ 500 VA / 60 W (safe area)≤ 16 VA / 32 W (Zone 2)
- Function
- Configurable switching thresholds, Sensor error, Window function
Nominal switching voltage≤ 250 V AC / 30 V DC (safe area)≤ 32 V AC / 32 V DC (zone 2)
Continuous current≤ 2 A AC/DC (safe area, Zone 2 area)
Approvals
- Approvals
- DNV GL, EAC
ROHSConform

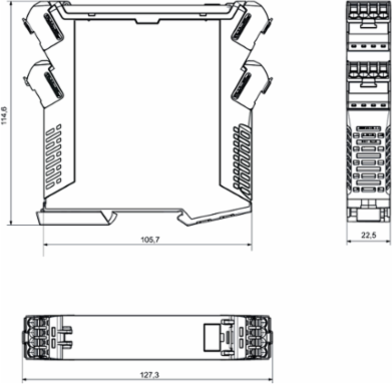

Dimensions And Weights
- Width
- 22.5 mm
- Height
- 127.3 mm
- Depth
- 114.6 mm
- Net weight
- 202 g
Width (inches)0.886 inch
Height (inches)5.012 inch
Depth (inches)4.512 inch
Safety-Related Specifications Low Demand Mode
- Average Probability of Failure on Demand (PFD
- 2.82 x 10-4 (Tproof = 1 year), 4.63 x 10-4 (Tproof = 2 years), 1.00 x 10-3 (Tproof = 5 years), additional data in the safety manual
Connection Data
- Type of connection
- PUSH IN
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 2.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.2 mm²
Wire connection cross-section, finely stranded, min.0.2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.2 mm²
Rated Data Ul
- UL certificate
- E337701.pdf
Safety-Related Basic Specifications
- Demand mode
- High
- Demand response time
- Signal input: < 0.5 s (opto output), Temperature input: < 1.1 s (opto output)
- Device type
- B
- Hardware fault tolerance (HFT)
- 0
- Relay lifetime
- 100000 times
- T
- 4 Years
- Total failure rate for dangerous undetected failures (λ
- 43 FIT
- Total failure rate for safe undetected failures (λ
- 278 FIT
- Probability of outage PFH
- 4.33 x 10-8 h-1
Demand rate3,000 s
Description of the "safe state"analogue Output ≤ 3.6 mA or output ≥ 21 mA, de-energized (relay output)
Diagnostic test interval30 s
Mean Time To Repair (MTTR)24 h
Safe Failure Fraction (SFF)93 %
Total failure rate for dangerous detected failures (λ352 FIT
Total failure rate for safe detected failures (λ0 FIT
Safety categorySIL 2

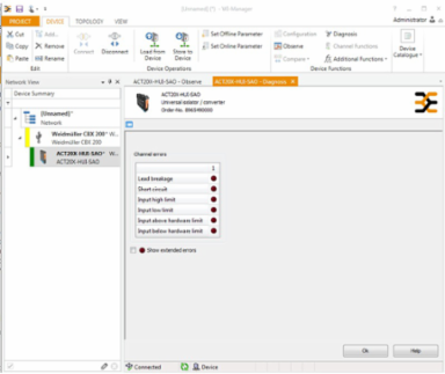

Alarm Output
- Alarm function
- No supply voltage, Device error
- Nominal switching voltage
- ≤ 125 V AC / 110 V DC (safe area)≤ 32 V AC / 32 V DC (zone 2)
- Power rating
- ≤ 62.5 VA / 32 W (safe area)≤ 16 VA / 32 W (Zone 2)
TypeRelay, 1 NC (voltage-free)
Continuous current≤ 0.5 A AC / 0.3 A DC (safe zone), ≤ 0,5 A AC / 1 A DC (zone 2)
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-90

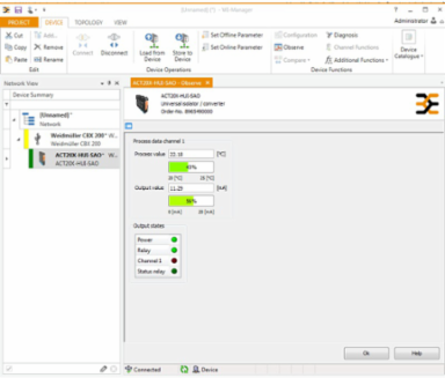

Output
- Type
- active (as current source) or passive (as current sink)
- Output signal limit
- 3.8…20.5 mA / 0…20.5 mA (dependent on range)
- load impedance current
- ≤ 600 Ω
Influence of load resistance≤ 0.01% of span / 100 Ω

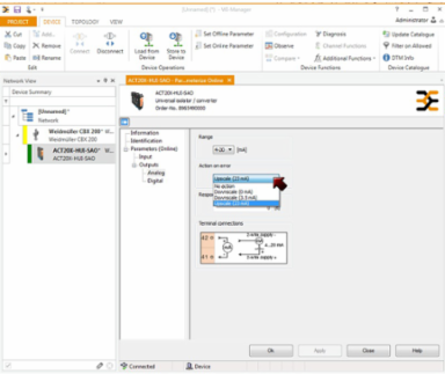

Output current0…23 mA, configurable: 0…20 / 4…20 / 20…0 / 20…4 mA, configurable downscale (3.5 mA) ⁄ upscale (23 mA) @ error
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Data For Ex Applications (Atex)
- Voltage U
- 8.7 V DC
- Power P
- 40 mW

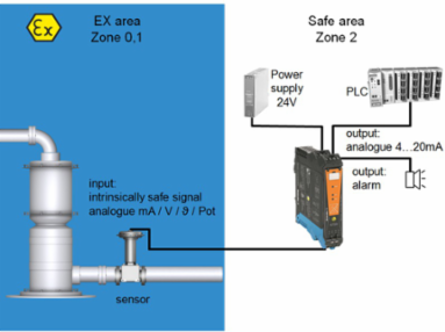

- Installation location
- Device installed in safe area, zone 2
Current I18.4 mA
MarkingII (1) G [Ex ia Ga] IIC/IIB/IIA, I (M1) [Ex ia Ma] I, II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC
Insulation Coordination
- EMC standards
- DIN EN 61326, NE 21
- Rated voltage
- 300 V
Insulation voltage2.6 kV (input / output)

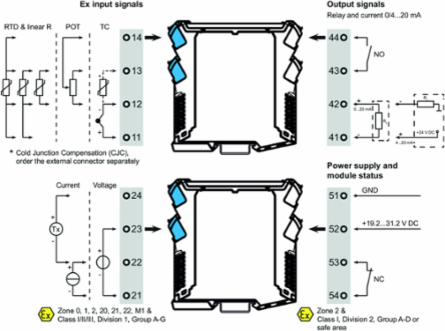

Input Ex
- Input current
- 0...20 mA, 4...20 mA
- Input resistance, current
- 20 Ω + PTC 50 Ω
- Input voltage
- configurable, 0…1 V DC, 0,2…1 V DC, 1…5 V DC, 0...(5)10 V, 2…10 V DC
- Potentiometer
- 10 Ω…10 kΩ

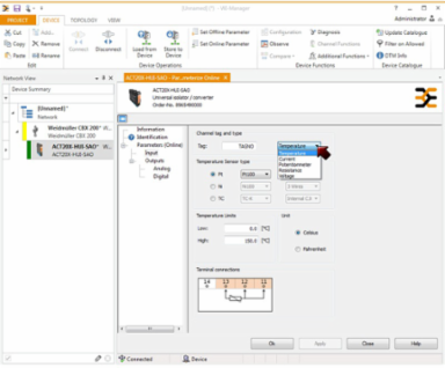

- Temperature input range
- Adjustable from -200...+800°C
Input resistanceconfigurable, 0…10 kΩ
Input resistance, voltage> 10 MΩ @ 600 mV, 2 MΩ @ 28 V
Line resistance in measuring circuit≤ 50 Ω
Sensor2-/3-/4-wire, RTD: PT10, PT20, PT50, PT100, PT250, PT300, PT400, PT500, PT1000, Ni50, Ni100, Ni120, Ni1000, Thermocouples: B, E, J, K, N, R, S, T ; in compliance with IEC 60584-1 and L, U in compliance with DIN43710, Potentiometer, Resistance: 0 - 12 kΩ
Typeintrinsically safe circuit, active (as current source) or passive (as current sink)
Temperatures
- Humidity
- 0...95 % (no condensation)
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -20 °C
- Storage temperature
- -20 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-20 °C...60 °C
Ratings Iecex/Atex/Cul
- ATEX certificate
- 10ATEX0071X.pdf
IEC Ex certificateIECEx certification
General Specifications
- Voltage supply
- 19.2…31.2 V DC
- Power consumption
- ≤ 2.1 W
- Humidity
- 0...95 % (no condensation)
Type of connectionPUSH IN
Protection degreeIP20
