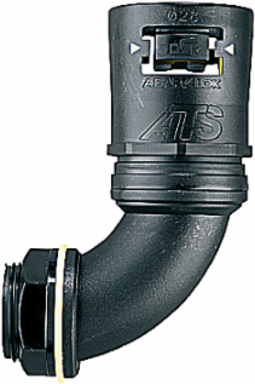

Adaptaflex AT28/075/C90/BLY 90° Conduit Fitting, 28mm Nominal Size, 3/4 Inch NPT, Polyamide
- MPN: AT28/075/C90/BLY
- UPC: 786210283067
- PPN: T-B-AT28/075/C90/BLY
CAD
$16.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Adaptalok ATS, 90 Degree Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 28mm, 3/4 Inch NPT Thread, Polyamide (Nylon) 66/TPE, Black with Yellow Elastomer
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- Other
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit DIN EN 61386-23
- Y
Nominal diameter28mm
Model90°-elbow
Construction typeExternal thread
Thread typeNPT
Thread length15mm
Material sealingTPE
Approved in combination with protective conduit URN
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 90 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with NPT Threads
SizeNC 28mm
ColorBlack/Yellow Elastomer
Cable Entry3/4 Inch NPT Thread
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.07 lbs. Each
Outer Dimensions (inches)1x1x1
