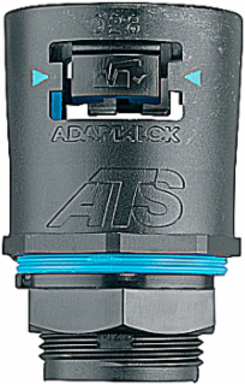

Adaptaflex AT21/050/A/BLB Straight Conduit Fitting 1/2 Inch NPT Thread, 21mm, Polyamide/Nylon 66

MPN: AT21/050/A/BLB
UPC: 786210282480
PPN: T-B-AT21/050/A/BLB

$5.17

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Adaptalok ATS, Straight Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 21mm, 1/2 Inch NPT Thread, Polyamide (Nylon) 66/TPE, Black with Blue Elastomer

Specifications

European Specifications (ETIM)

ETIM	EC001176 Screw connection for corrugated plastic hose
Degree of protection (IP)	IP68
Revolving thread	N
Type of connection	Snap connection
Thread connection size	Other
Total length	30.3mm
Material	Polyamide
Colour	Black
Approved in combination with protective conduit DIN EN 61386-23	Y

Nominal diameter	21mm
Model	Straight
Construction type	External thread
Thread type	NPT
Thread length	11.8mm
Total height	51.1mm
Material sealing	TPE
Approved in combination with protective conduit UR	N

North American Specifications (UNSPSC)

UNSPSC	39121311 Electrical fittings
Brand Name	Adaptaflex
Application	For Insertion into Threaded Entries or Knockout to Connect Conduit
Material	Polyamide/Nylon 6.6
Connection	Straight
