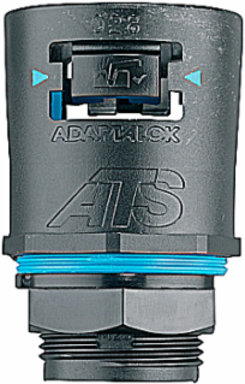

Adaptaflex AT42/125/A/BLB Straight Conduit Fitting 1-1/4 Inch NPT Thread Polyamide 42mm
Adaptaflex AT42/125/A/BLB Straight Conduit Fitting 1-1/4 Inch NPT Thread Polyamide 42mm
- MPN: AT42/125/A/BLB
- UPC: 5020963038969
- PPN: T-B-AT42/125/A/BLB
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.93/ EA
Description
Adaptalok ATS, Straight Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 42mm, 1-1/4 Inch NPT Thread, Polyamide (Nylon) 66/TPE, Black with Blue Elastomer
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- Other
- Total length
- 54.2mm
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit DIN EN 61386-23
- Y
Nominal diameter42mm
ModelStraight
Construction typeExternal thread
Thread typeNPT
Thread length15.8mm
Total height66.6mm
Material sealingTPE
Approved in combination with protective conduit URN
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypeConduit Fitting with NPT Threads
SizeNC 42mm
ColorBlack/Blue Elastomer
Cable Entry1-1/4 Inch NPT Thread
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.1 lbs. Each
Outer Dimensions (inches)1x1x1
