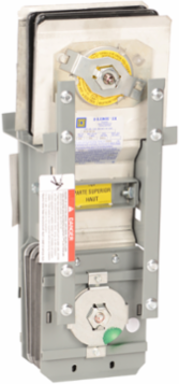

Square D AF2310G12B I-Line Busway Adaptor, 1000A, 3-Wire, 12 Inch Length, Indoor
- MPN: AF2310G12B
- UPC: 785901016885
- PPN: SCH-AF2310G12B
CAD
$4242.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric AF2310G12B I-Line Busway Adaptor is engineered for exceptional performance in power distribution applications. Rated for 1000A and designed with a robust 3-wire configuration, this adaptor seamlessly integrates into existing systems. With a compact 12-inch length, it is optimized for indoor use, allowing for flexible configurations while ensuring reliable connections within your electrical setup. This product is a vital component for enhancing the efficiency and functionality of busway systems in various industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Compliance|TAA Compliant | BAA Compliant via COTS
Complementary Attributes
- Line Rated Current
- 1000-1000 A aluminium
Important Information Attributes
- Certificate Agency
- UL 857CSA C22.2 No 27:1994, IEC 61439-6
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 24 kg CO2 eq., 23.946430294627785
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 144 kg CO2 eq., 143.5730456470728
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Location
- bolt
- Mounting Location
- indoor
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- adaptor
- Range Of Product
- I-Line
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 391 kg CO2 eq.
- Pep Code
- ENVPEP2412020EN
- Pep Verification Date
- 2025-01-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity origin
- Recyclability Potential In %
- 92
- [Ue] Rated Operational Voltage
- 600 V AC/DC 50/60 Hz
- Package Weight(Lbs)
- 16.783 kg
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]32.73531281570718, 33 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.6680665643057395, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]188 kg CO2 eq., 187.73963929221821
Local Publishable Date2025-11-19
Stocking FlagY
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Materialaluminium: busbar
Phase3 phase
Product Destinationbusbar trunking 1000-1000 A aluminium
Protection Type50 percent capacity integral ground bus
ReturnabilityYes
Sustainable PackagingNo
Wiring Configuration3-wire
Database Version2024-01
Pcr VersionPCR-4-ed4-EN-2021 09 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity origin
Energy Model - End Of Life [C1-c4]Electricity origin
Length Total12 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8544499000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 390.6624946139317
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2412020EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2412020EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep Verification Date2025-01-31
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeadaptor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
