Brady 64057 Adjustable Gate Valve Lockout Device, 1 to 6-1/2 Inch Diameter, Polypropylene Construction
- MPN: 64057
- UPC: 754473640576
- PPN: BRD-64057
- UNSPSC: 39121909
CAD
$52.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

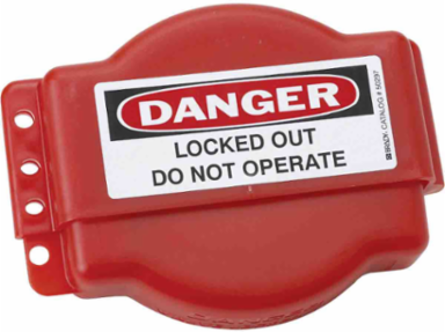

The Adjustable Gate Valve Lockout is versatile and economical. It adjusts to fit 1 in. to 6 1/2 in. diameter valve handles, replacing three conventional gate valve lockouts.
Features
- The Adjustable Gate Valve Lockout is made of durable polypropylene which is resistant to extreme temperatures ranging from -13 to 194°F (-25 to 90°C)
- Device is compact for easy carrying and storage

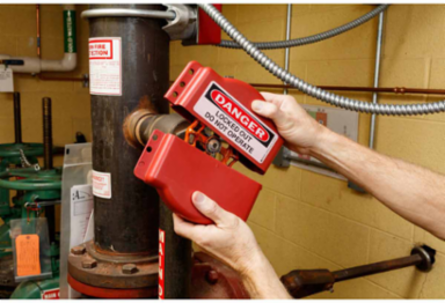

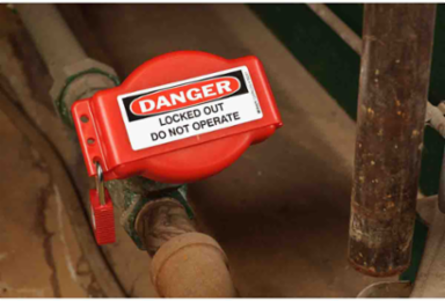

- Cover the valve handle with the gate valve lockout device and apply a personal padlock and lockout tag to ensure employee safety
- Supplied with English, Spanish and French danger labels
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | OSHA 1910.147 |
| Language | English; French; Spanish |
| National Stock Number (NSN) | 4820015720001 |
| Risk Type | Mechanical Risk |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Brady Material Number | LOTO-70 |
| Material | Polypropylene |
| Depth (mm/cm/m) | 54.10 mm |
| Diameter (mm/cm/m) | 169.67 mm |
| Dimensions (Metric) | 209.00 mm W x 130.00 mm H x 169.67 mm Dia x 54.10 mm D |
| Lockout Height (in/ft/yd) | 2.13 in |
| Lockout Width (in/ft/yd) | 8.23 in |
| Maximum Service Temperature °C | 80 °C |
| Maximum Shackle Diameter (in/ft/yd) | 0.35 in |
| Minimum Service Temperature °C | -20 °C |
| Minimum Shackle Clearance (in/ft/yd) | 0.75 in |
| Service Temperature Range °C | -20 °C to 80 °C |
| Sign Size-General | 6.68 in Dia |
| Size - Width (mm) | 209.00 mm |
| Valve Wheel Diameter Range (in/ft/yd) | 1 to 2.5 in |
| Color | Red |
|---|---|
| Gate Valve Lockout Type | Two-Piece Adjustable |
| Maximum Number of Padlocks | 3 |
| Primary Noun, Basic Function | Lockout Device |
| Text Legend | DANGER LOCKED OUT DO NOT OPERATE |
| Adhesive (Y/N) | No |
| Lockout Material | Polypropylene |
| SAP B-Number | LOTO-70 |
| Diameter (in/ft/yd) | 6.68 in |
| Dimensions | 6.68 in Dia |
| Height (mm/cm/m) | 130.00 mm |
| Lockout Height (mm/cm/m) | 54.1 mm |
| Lockout Width (mm/cm/m) | 209.04 mm |
| Maximum Service Temperature °F | 302 °F |
| Maximum Shackle Diameter (mm/cm/m) | 9.40 mm |
| Minimum Service Temperature °F | -40 °F |
| Minimum Shackle Clearance - (mm/cm/m) | 19.05 mm |
| Service Temperature Range °F | -40 °F to 302 °F |
| Size - W x H x D (mm) | 209.00 x 130.00 x 54.10 |
| Valve Wheel Diameter (mm/cm/m) | 25 - 165 |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
