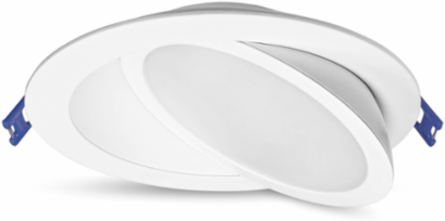

Leviton DAR60-S1W Adjustable Slim Downlight with Selectable CCT, 6-inch Round Aperture
- MPN: DAR60-S1W
- UPC: 078477023679
- PPN: LEV-DAR60-S1W
CAD
$45.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Leviton’s 6-inch round aperture Adjustable Slim Downlight, with selectable color temperature, offers the performance, ease of use and flexibility valued for today’s residential and light commercial applications. A direct mount downlighting solution that does not require an existing Housing or Junction Box and is fully adjustable: up to 80° of tilt and 350° of rotation. Users can change the color temperature of the light between 5 different values ranging from 2700K to 5000K with a simple switch. Pair this downlight with one of the many Leviton compatible dimmer control options to adjust for the desired light level. A total lighting solution that will provide years of quality illumination and reliable performance. Compatible with Leviton Dimmers: SureSlide: 6674N, 6674, 66DF IllumaTech: IPL06, IPE04 Decora Slide with Lever Edge: ESL01 Decora Slide: DSL06, DSE06, DSM10 Decora Digital: DDM06 Decora Smart Wi-Fi: D26HD, D2ELV, D2MSD Decora Smart Z-Wave: ZW6HD Decora Evolve: VM2D3, VMDD3 Toggle Slide: TSL06, TSM10 Trimatron Rotary: RDL06, RNL06
Features

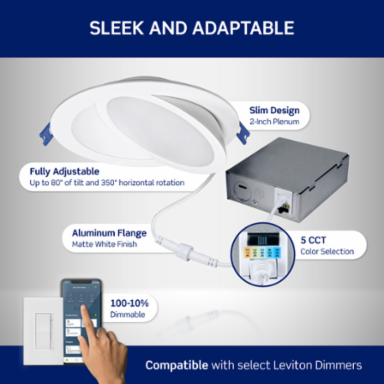

- Direct mount downlighting solution; no existing housing or junction box required
- 6-inch Round Aperture delivers 1100 Lumens at 13W
- Polycarbonate Diffusion Lens is fully adjustable: up to 80° of tilt and 350° of rotation

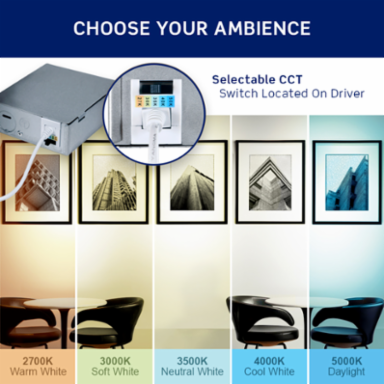

- Field selectable Color Temperature (2700K to 5000K)
- Light Engine consists of 90+ CRI LEDs with color accuracy within 4 SDCM
- 50,000 Hours @ 70% Lumen Maintenance
- IC Rated Die Cast Aluminum Housing
- Diffuse Polycarbonate Lens
- Closed-cell Gasket included for use in Wet Location and Air-tight installations
- 120VAC Forward and Reverse Phase Dimming
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- Application
- Suitable for use in clothes closets when installed in accordance with NEC® 410.16 (A)(1) (C)(3) spacing requirements
- Housing
- Insulated Ceiling (IC) Rated
- Title 24 Compliant
- Complies with Title 24 Part 6 JA8 High Efficacy LED Light Source Requirements
Energy RatingENERGY STAR® Certified
ListingcETLus Listed, Suitable for Wet Locations, Compliant with ASTM E283 (Air Leakage Rate 2.0 CFM or Less)
Material Specifications
- Color
- Polycarbonate Lens
MaterialDie-cast Aluminum Housing
Product Specifications
- Color Rendering Index
- 90+
- Dimming Technology
- Forward or Reverse Phase Dimming from 100% - 10%
- Input Voltage
- 120VAC, 50/60Hz
- Product Aperture Size
- 6-Inch Round
Correlated Color TemperatureSelectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
Input Power13W
Lumen Output1100Lm
RatingMeets Class A Sound Rating
Environmental Specifications
- Listing
- Suitable for Wet Locations
Operating Temperature-20°C (-4°F) to 40°C (104°F)
