Weidmuller 2434390000 Fuse Terminal Block, 4 mm², 250 V, 6.3 A, Push In Technology, Black
Weidmuller 2434390000 Fuse Terminal Block, 4 mm², 250 V, 6.3 A, Push In Technology, Black
- MPN: 2434390000
- PPN: WDM-2434390000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$18.98/ EA
Description

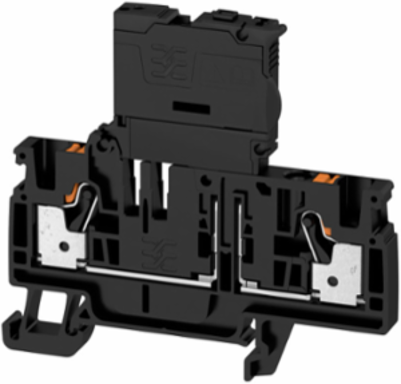

Fuse terminal, PUSH IN, 4 mm², 250 V, 6.3 A, black
Specifications
Approvals
- Approvals
- CE, CSA, cURus, CURUSEX, DNV GL, EAC, IECEXTUR, TUEVNATEX
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 74 mm
- Depth
- 68 mm
- Depth including DIN rail
- 69 mm
Width (inches)0.24 inch
Height (inches)2.913 inch
Depth (inches)2.677 inch
Net weight17.751 g
Fuse Terminals
- Cartridge fuse
- G-Si. 5 x 20
- Leakage current, max.
- 0.5 mA
- Power loss for overload and short-circuit protection for a composite arrangement
- 1.6 W at 6.3 A @ 34°C
- Power loss for short-circuit protection only for a composite arrangement
- 2,5 W bei 6,3 A @ 32 °C
DisplayRed LED
Operating voltage, max.250 V
Power loss for overload and short-circuit protection for an individual arrangement1,6 W bei 6,3 A @ 31 °C
Power loss for short-circuit protection only for an individual arrangement4,0 W bei 6,3 A @ 41 °C
Csa Rating Data
- Certificate No. (CSA)
- 200039-70089609
- Current size C (CSA)
- 10 A
- Voltage size B (CSA)
- 300 V
- Voltage size D (CSA)
- 300 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)10 A
Current size D (CSA)10 A
Voltage size C (CSA)150 V
Wire cross section max. (CSA)10 AWG
Additional Technical Data
- Installation advice
- Rail
- Snap-on
- No
- Type of mounting
- TS 35
Open sidesright
Type of fixingSnap-on
With snap-in pegsNo
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblack
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
System Specifications
- End cover plate required
- Yes
- Number of levels
- 1
- Number of potentials per tier
- 1
- Rail
- TS 35
- PE function
- No
Number of potentials1
Number of clamping points per level2
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated cross-section
- 4 mm²
- Rated voltage to adjoining terminal
- 500 V
- Current at maximum wires
- 6.3 A
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
- Rated impulse withstand voltage
- 4 kV
- Surge voltage category
- III
Rated voltage250 V
Rated current6.3 A
StandardsDIN EN 60947-7-3
Power loss in accordance with IEC 60947-7-x1.02 W
Pollution severity3
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- TUEV17ATEX8064U
- Current (ATEX)
- 6.3 A
- Current (IECEX)
- 6.3 A
- Marking EN 60079-7
- Ex ec II C Gc
Certificate No. (IECEX)IECEXTUR17.0030U
Wire cross section max. (ATEX)4 mm²
Wire cross section max. (IECEX)4 mm²
Ex 2014/34/EU labelII 3 G D
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.5 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A4
- Stripping length
- 12 mm
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Connection cross-section, stranded, max.4 mm²
Connection directiontop
Number of connections2
Twin wire-end ferrules, max.1.5 mm²
Type of connectionPUSH IN
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.4 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size C (cURus)
- 10 A
- Voltage size B (cURus)
- 300 V
- Voltage size D (cURus)
- 300 V
Conductor size Factory wiring max. (cURus)10 AWG
Conductor size Field wiring max. (cURus)10 AWG
Current size B (cURus)10 A
Current size D (cURus)10 A
Voltage size C (cURus)150 V
