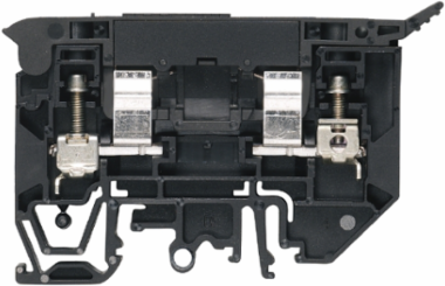

Weidmuller 1880410000 WSI 4/2/LD 10-36V AC/DC
Weidmuller 1880410000 WSI 4/2/LD 10-36V AC/DC
- MPN: 1880410000
- PPN: WDM-1880410000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$24.25/ EA
Description
W-Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection
Specifications
Approvals
- Approvals
- CE, CSA, cURus, EAC, LLOYDSREG
- UL File Number Search
- E60693
ROHSConform
Display Element
- Operating voltage for display, max.
- 65 V
- Type of voltage for indicator
- AC/DC
Operating voltage for display, min.10 V
Dimensions And Weights
- Width
- 9.1 mm
- Height
- 81.6 mm
- Depth
- 53.5 mm
- Net weight
- 22.8 g
Width (inches)0.358 inch
Height (inches)3.213 inch
Depth (inches)2.106 inch
Fuse Terminals
- Cartridge fuse
- 6.3 x 32 mm (1/4 x 1 1/4")
- Fuse holder (cartridge holder)
- Pivoting
- Power loss for overload and short-circuit protection for a composite arrangement
- 1.6 W at 1.0 A @ 41°C
- Power loss for short-circuit protection only for an individual arrangement
- 4.0 W at 10 A @ 55°C
DisplayRed LED
Operating voltage, max.36 V
Power loss for short-circuit protection only for a composite arrangement2.5 W at 2.5 A @ 68°C
Type of voltage for indicatorAC/DC
Dimensions
- TS 35 offset
- 25 mm
Csa Rating Data
- Certificate No. (CSA)
- 200039-1575489
- Wire cross section min. (CSA)
- 30 AWG
Wire cross section max. (CSA)10 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1.5 mm²
Additional Technical Data
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourblack
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Fuse isolator, with LED, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35, TS 32
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 4 mm²
- Rated voltage to adjoining terminal
- 500 V
- Current at maximum wires
- 6.3 A
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
- Rated impulse withstand voltage
- 6 V
Rated voltage36 V
Rated current6.3 A
StandardsIEC 60947-7-3
Power loss in accordance with IEC 60947-7-x1.02 W
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.5 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 0.8 Nm
- Torque level with DMS electric screwdriver
- 2
- Wire connection cross section AWG, max.
- AWG 10
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
Clamping range, max.6 mm²
Clamping screwM 3
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A3
Stripping length10 mm
Tightening torque, min.0.5 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 22
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.4 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 30 AWG
- Conductor size Field wiring min. (cURus)
- 30 AWG
Conductor size Factory wiring max. (cURus)10 AWG
Conductor size Field wiring max. (cURus)10 AWG
