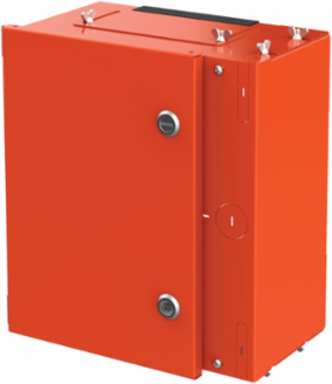

nVent Hoffman AID1412 Small, Internal Disconnect Shield, 13.5x12x6.5in, Safety Orange, Steel
- MPN: AID1412
- UPC: 783510358730
- PPN: HOF-AID1412
CAD
$398.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Small, Internal Disconnect Shield, 13.5x12x6.5in, Safety Orange, Steel
Features
- Reduces risk of electric shock and arc flash exposure
- Body construction meets UL Type 1 safety requirements
- Grounding studs on door and body for electrical safety
- Quarter-turn slotted latch for secure closure
- Spring-loaded slam latch with key for automatic operation
- 110-degree door stop prevents accidental contact
- Gland plates top and bottom for easy wire installation
- Tool-less gland plate installation with wing nuts
- Symmetrical design fits left- or right-hand disconnect switches
- Open back design allows mounting inside main electrical enclosure
Documentation & Downloads
Specifications
Additional
- Amperage Range
- 30 - 100 A
- Weight
- 13.2 lb
- Finish
- Smooth Gloss
- Mounting
- Open back, mounting holes on back flanges
- Door Stop Angle
- 110 degrees
- Ingress Rating
- IP30
Size13.5 x 12 x 6.5 in
Material16 gauge Mild Steel
ColorOSHA Safety Orange
Latch TypeQuarter-turn slotted, spring-loaded slam latch with 7mm square insert
NEMA Rating1 Indoor, electrical protection
ComplianceUL Listed Type 1, cUL Listed Type 1, CSA C22.2 No 94
