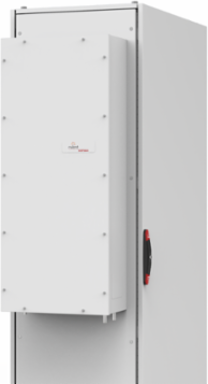

nVent Hoffman PWS7102R5 Air-Water Heat Exchanger 950W, 500x200x150mm, Galvanized, IP55
- MPN: PWS7102R5
- UPC: 783510526856
- PPN: HOF-PWS7102R5
CAD
$3745.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This range of vertical air-water heat exchanger, is ideal for dusty environments with high temperatures. This Air / Water Heat Exchanger, PWS, PWS7102R5 item measures 500x200x150mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Description: For vertical installation. Additional work is not required to the cutout to guarantee the IP. Integrated thermostat and solenoid valve for temperature control, and temperature monitoring with alarm contact. The thermostat is adjustable between 8 °C and 50 °C, factory setting 35 °C. Maximum permissible operating pressure of 10 bar. The cooling capacity for specific conditions are indicated in the diagrams. Water inlet temperature between 1 °C up to 35 °C.
- Type of connection: Spring-type terminal included with plug for electrical connection, 13 mm hose nozzle for water pipe connections.
- Material: Housing made of galvanized steel powder coated. Heat exchanger manufactured from copper pipe, with aluminium fins.
- Ambient temperature range: +1 °C to +70 °C.
- Protection: IP 55 towards the electrical enclosure.
- Finish: RAL 7035.
- Pack quantity: One unit.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Height (H)
- 500
- Depth (D)
- 150
- Weight
- 8.33
- Finish
- Powder Coated
- Color Code
- RAL 7035
Capacity Watts @ Δt 25°C950
Width (W)200
Max Current0.4
MaterialMild Steel
ColorLight Gray
Protection RatingIP55
