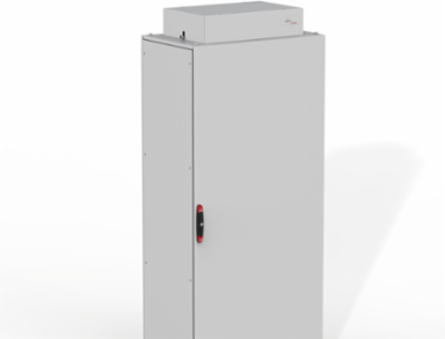

nVent Hoffman PWD5302R5 Roof heat exchanger 2150W, 230V, Galvanized, IP55
- MPN: PWD5302R5
- UPC: 783510526825
- PPN: HOF-PWD5302R5
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This roof air-water heat exchanger, is ideal for dusty environments with high temperatures. This Air / Water Heat Exchanger, PWD, PWD5302R5 item measures 140x600x390mm has a material of Mild Steel color Light Gray, finish Powder Coated.
Features
- Description: For roof installation. Additional work is not required to the cutout to guarantee the IP. Integrated thermostat and solenoid valve for temperature control. The thermostat is adjustable between 8 °C and 50 °C, factory setting 35 °C. Maximum permissible operating pressure of 10 bar. The cooling capacity for specific conditions are indicated in the diagrams. Water inlet temperature between 1 °C to 35 °C.
- Type of connection: 3.5 m cable 3 × 0.75 mm² for electrical connection. 13 mm hose nozzle for water pipe connections.
- Material: Housing manufactured from galvanized steel, powder coated. Heat exchanger manufactured from copper pipe, with aluminium fins.
- Ambient temperature range: +1 °C to +70 °C.
- Protection: IP 55 towards the electrical enclosure.
- Finish: RAL 7035.
- Pack quantity: One unit.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Height (H)
- 140
- Depth (D)
- 390
- Weight
- 23.33
- Material
- Mild Steel
- Color
- Light Gray
Capacity Watts @ Δt 25°C2,150
Width (W)600
Max Current0.4
Protection RatingIP55
FinishPowder Coated
Color CodeRAL 7035
