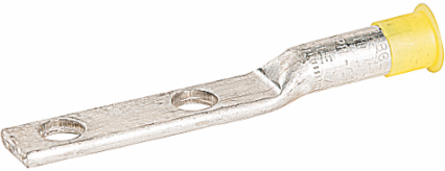

Blackburn GLE 350 N Aluminum Two-Hole CSA Die Lugs for 350 Conductors, 1/2 Inch Bolt
- MPN: GLE 350 N
- UPC: 783786729579
- PPN: T-B-GLE 350 N
CAD
$78.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Two-Hole CSA Die Lug, Use with Aluminum and Copper Conductors, 350 Stranded-Compr-CPT, 1/2 Inch Bolt
Features
- Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made from Aluminum for High Strength and Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Use with Aluminum and Copper Conductors. Provide high strength and high conductivity. Prevents oxidation and keeps out moisture. Easy Identification. |
| Standard | ANSI C119.4 |
| Conductor Range | 350 |
| Finish | Bare |
| Bolt Size | 1/2 inch |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Two-Hole CSA Die Lugs |
| Application | Compression Connector |
| Size | Length 6 inches |
| Material | Aluminum |
| Insulation | No |
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 0.35 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
