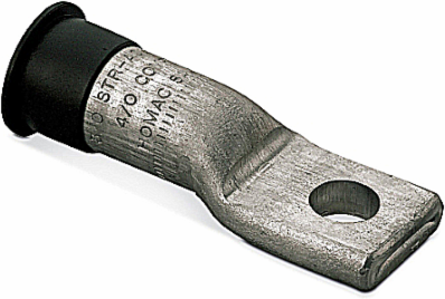

Blackburn SA 8-48 TN Aluminum One Hole NEMA Lug, 3-1/8 Inch Length, Tin-Plated, 1/2 Inch Bolt
- MPN: SA 8-48 TN
- UPC: 783786750443
- PPN: T-B-SA 8-48 TN
CAD
$26.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin-Plated Aluminum Compression One-Hole NEMA Lug - Common Die Series for Aluminum and Copper Conductors on Homac 125 Series Insulated Buses, 1/2 inch Bolt, Concentric 8, Solid 6, Installing Dies TU, 52 BG, 243, 5/8, CSA 22
Features
- Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made from Aluminum for High Strength and Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Blackburn
- Special Features
- Dual-Rated for use with Aluminum and Copper Conductors. Made from Aluminum for High Strength and High Conductivity. Connector Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with conductor sizes and die references.
- Standard
- ANSI C119.4
- Conductor Range
- #8 Concentric. #6 Solid
- Finish
- Tin-Plated
- Bolt Size
- 1/2 inch
IGCC4668 Wire or cable compression connector
TypeAluminum One Hole NEMA Lug
ApplicationDesigned for General Applications and for Installation on 125 Series Insulated Buses.
SizeLength 3-1/8 inch
MaterialAluminum
InsulationNone
Packaging
- Outer Quantity
- 100
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)7.5x6x6.5
