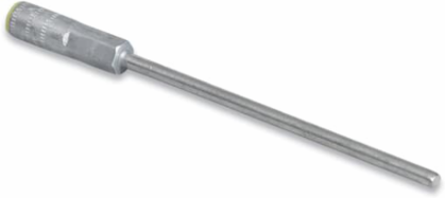

Homac U 5 U 10-4 AL COMP 4 INCH PIN TERM 1/0
- MPN: U 5 U 10-4
- UPC: 783786756735
- PPN: T-B-U 5 U 10-4
- UNSPSC: 39121409
CAD
$30.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin Plated Aluminum Compression Pin Terminals - U5 Series, conductor size Aluminum - Solid, 1/0 Stranded, 1/0 ACSR, 2/0 Compact, installing dies: TU, 52, BG, 243, 5/8. Solid Copper Pin 1/4 inch Diamter, Pin length 4 inch. Sealant. Body Length 2 inch, Overall Length 6 inch.
Specifications
Additional Information
| Application | Wide Application in Connecting Aluminum and ACSR to Copper Alloy Equipment Clamps, Designed for use with Copper. |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Name | ELECTRICAL TERMINAL <1000V |
| Size | Pin Length 4 inches. |
| Surface Finishing | Bare Body, Tin-Plated Pin |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Material | Aluminum, with Copper Pin |
| Product Type | Pin Terminal |
| Special Functions | Contains Oxide Inhibiting Compound |
| Wire Size | AL 1/0 STR AWG1/0 ACSR AWG |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
