Homac X 5 U 10-325 AL COMP PIN TERM 1/0 2-1/2 INCH
- MPN: X 5 U 10-325
- UPC: 783786759767
- PPN: T-B-X 5 U 10-325
- UNSPSC: 39121409
CAD
$34.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

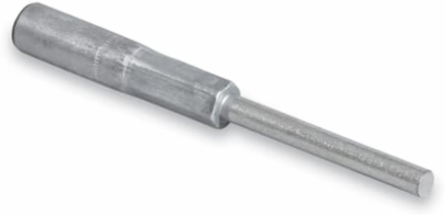

Tin Plated Aluminum Compression Pin Terminals - X5 Series, Conductor size Aluminum - 2/0 Compact, 1/0 Stranded, 1/0 ACSR, installing dies TX, 76, 249, 11A, 840, 845, WK840. Solid Copper Pin 21/64 inch Diameter, Pin length 2-1/2 inch. Body Length 3 inch, Overall Length 5-1/2 inch. Oil Stop, Sealant.
Specifications
Additional Information
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Insulation Material | None |
| Product Type | Pin Terminal |
| Special Functions | Solid Copper Pin |
| Wire Size | 1/0 STR AWG1/0 ACSR AWG |
| Connection Type | Compression |
|---|---|
| Enclosure Type | None |
| Product Name | ELECTRICAL TERMINAL <1000V |
| Size | Pin Length 2-1/2 inch |
| Surface Finishing | Tin-Plated |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
