Homac SAKM 1-48 TN AL Comp Lug 1 Hole Meter Socket 1
- MPN: SAKM 1-48 TN
- UPC: 783786748037
- PPN: T-B-SAKM 1-48 TN
- UNSPSC: 39121409
CAD
$29.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

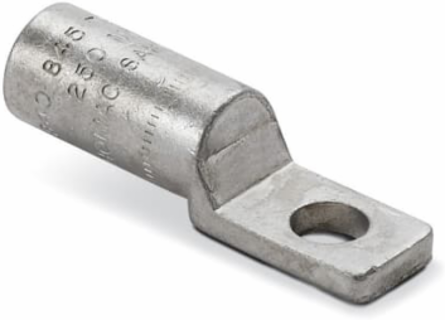

Tin-Plated Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #1 Stranded - Compressed, 1/0 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Red Cap. Dual Rated for Aluminum and Copper Conductors
Specifications
Additional Information
| Application | For Meter Pan and General Applications |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Type | Compression Lug One Hole Meter Socket |
| Special Functions | Marked with Conductor Sizes and Die References. |
| Surface Finishing | Tin Plated |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Product Name | ELECTRICAL TERMINAL<1000V |
| Size | 3-1/4 inch |
| Standards | ANSI C119.4 |
| Wire Size | #1 STR/COMPR AWG1/0 COMPT/SOL AWG |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
