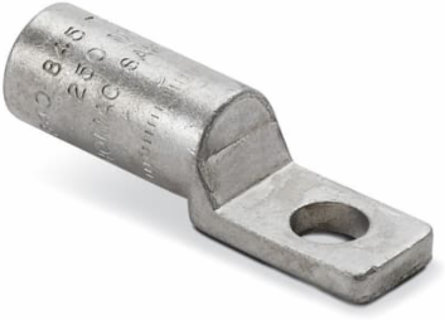

Homac SAKM 4-38 TN AL COMP LUG 1 HOLE METER SOCKET 3/8
Homac SAKM 4-38 TN AL COMP LUG 1 HOLE METER SOCKET 3/8
- MPN: SAKM 4-38 TN
- UPC: 783786748297
- PPN: T-B-SAKM 4-38 TN
- UNSPSC: 39121409
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.95/ EA
Description
Tin Plated Aluminum Meter Socket Lug - One-Hole - for 3/8 inch bolt, Wire Range #4 Stranded - Compressed, #4 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 27/64 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors
Specifications
Additional Information
- Application
- For Meter Pan and General Applications
- Connection Type
- Compression
- Insulation Material
- None
- Product Type
- Compression Lug One Hole Meter Socket
- Special Functions
- Marked with Conductor Sizes and Die References.
- Surface Finishing
- Tin Plated
Brand / LabelHomac
Effective Date20080619
Product NameELECTRICAL TERMINAL<1000V
Size3-1/4 inch
StandardsANSI C119.4
Wire Size#4 STR AWG#4 COMPR AWG
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
