Blackburn

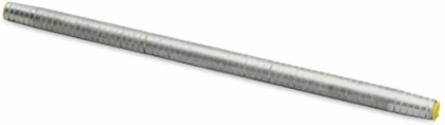

Blackburn RC25 Aluminum 13-5/8 Inch Full-Tension Compression Splice for 2 ACSR/AAAC Conductor

Aluminum 13-5/8 Inch Full-Tension Compression Splice for 2 ACSR/AAAC Conductor
  • MPN: RC25
  • UPC: 783786051182
  • PPN: T-B-RC25
  • UNSPSC: 39121449

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$101.11/ EA

Description

Aluminum 13-5/8 inch Full-Tension Distribution Compression Splice for Wire Range: 2ACSR(6/1,7/1), 2AAAC(7), 2 5005(7), 2AAC(7), Mechanical Dies: 737, 747, W-C, W-247, W-702, Hydraulic Dies: B39EA, 167, 247, 702, 737, 747

Specifications

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice

Additional Information

Application
Distribution Compression Connector
Connection Type
Compression
Insulation Material
None
Number of Conductors
2
Product Type
Compression Splice
Special Functions
Center stop assures proper conductor positioning. External end taper provides conductor stress relief, ease of stringing and corona protection. Internal end chamfer allows easy conductor insertion and prevents sharp edge contact with conductor. Replaces two-piece splices. Type RC Single Sleeve, Full Tension Splice for ACSR, AAAC, 5005 and AAC Conductor.
Brand / LabelBlackburn
Effective Date19991027
Mounting TypeNone
Product NameBKB-OVERHEAD SPLICE & TAP CONN
Size13-5/8 inch
StandardsANSI C119.4

Ordering

Country of Origin
Mexico (MX)
Selling Unit of Measureeach
