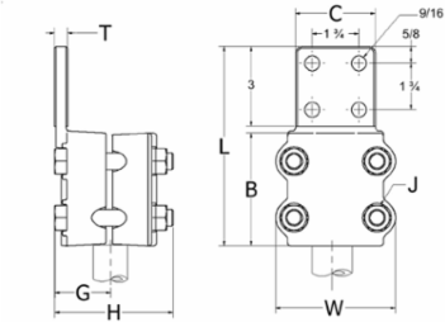

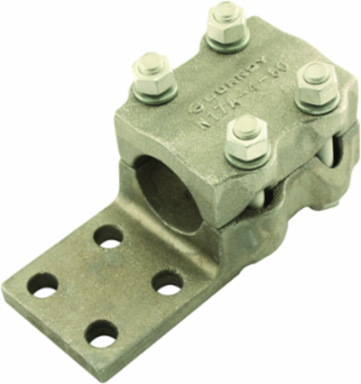

Burndy NA17A4N Aluminum Terminal 1-1/2 IPS, 1.90 Inch Dia, 3.00 Inch Pad Width, 4 NEMA Holes
- MPN: NA17A4N
- UPC: 781810003749
- PPN: BUR-304343
CAD
$402.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Al Terminal, 1.75" Spacing, Bolted, Tube to Flat, 1-1/2" IPS, 1.90" Dia, 4 NEMA Pad Holes
Documentation & Downloads
Specifications
Additional
| Rating - KVA | 230 kV |
|---|---|
| Size | 1-1/2 in IPS |
| Width | 3.64 in (92 mm) |
| Height | 3.88 in |
| Hole Size | 9/16 in |
| Number of Holes | 4 |
| Material - Hardware | Aluminum |
| Connection Type | Tube to Flat |
| Certification - CSA Approved | No |
| Certification - UL Listed | No |
| Certification - UL Recognized | No |
| Conductor - AL Tube Standard Size | 1 1/2 IPS |
| Number Of Conductors | 1 |
| Clamping Element Design | Body and Cap |
| Physical Attribute - Pad Configuration | 3 x 3 - 4 holes |
| Installation Torque Recommended | 300 in-lb |
|---|---|
| Length Overall | 7.50 in (191 mm) |
| Pad Width | 3.00 in |
| Diameter | 3.00 in |
| Hole Spacing Center to Center | 1.75 in |
| Material | Aluminum Alloy |
| Plating Type | Unplated |
| Mounting Type | Bolted |
| Certification - cULus | No |
| Certification - ETL | No |
| Standards - RoHS Compliance Status | CM |
| Conductor - Copper Tube Standard Size | 1 1/2 IPS |
| Connector Type | Terminal |
| Physical Attribute - Pad Alignment | Offset |
