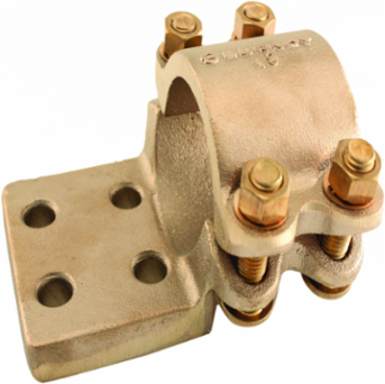

Burndy NA142N Copper Bolted Terminal Tube to Flat, 3/4 Inch, 230 kV, 2 Pad Holes
- MPN: NA142N
- UPC: 781810002322
- PPN: BUR-290178
CAD
$426.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Bolted Terminal , Tube to Flat , 3/4" Cu Pipe , 2 Pad Holes , 230 kV.
Documentation & Downloads
Specifications
Additional
| Voltage Rating | 230 kV |
|---|---|
| Number Of Conductors | 1 |
| Terminal Type | Bolted Terminal |
| Material - Hardware | DURIUM32 Silicon Bronze |

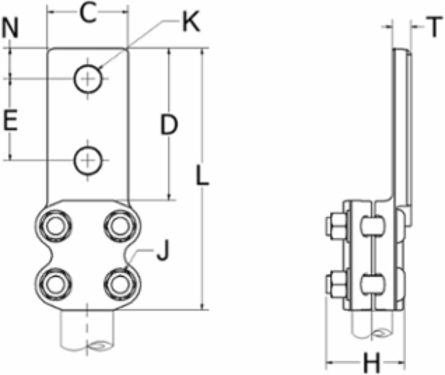

| Dimension - Width | 2.44 in |
| Dimension - B Length | 2.00 in |
| Dimension - F Width Center to Center | 1.75 in |
| Dimension - Hole Size fraction | 9/16 |
| Physical Attribute - Pad Alignment | Offset |
| Clamping Element Design | Body and Cap |
| Plating Type | Unplated |
| Certification - CSA Approved | No |
| Certification - cULus | No |
| Standards - RoHS Compliance Status | EX |
| Size | 3/4 IPS |
|---|---|
| Connection Type | Tube to Flat |
| Material | Copper Alloy |
| Dimension - Length Overall | 5.25 in |
| Dimension - Height | 2.00 in |
| Dimension - D | 3.00 in |
| Dimension - Pad Width | 1.63 in |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Pad Configuration | 1.63 x 3 - 2 holes |
| Rating - KVA | 230 kV |
| Certification - UL Recognized | No |
| UL Listed | No |
| Certification - ETL | No |
| Application | Substation |
