Homac AK 600 NTN AL TP LAYIN TRANS SPADE CONN 2-600
Homac AK 600 NTN AL TP LAYIN TRANS SPADE CONN 2-600
- MPN: AK 600 NTN
- UPC: 783786692675
- PPN: T-B-AK 600 NTN
- UNSPSC: 39121443
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$240.21/ EA
Description

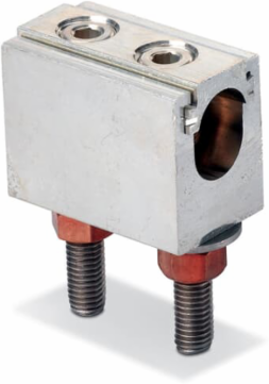

Tin Plated Aluminum Lay-In Transformer Spade Connectors - AK Series, cable range 2-600, outlets 1
Specifications
Additional Information
- Application
- Lay-In Transformer Spade Connector
- Connection Type
- Mechanical
- Insulation Material
- None
- Number of Conductors
- 1
- Product Type
- Quick-Disconnect Transformer Connector
- Special Functions
- The Slide-out Keeper Minimizes the hassle and hazards of forcing cables into closed ports. Require only a cable stripper and Allen hex wrench - no crimping tools or dies or other special tools needed for installation. Transformer changes require only the connector to be unbolted from the spade - no need to disconnect all the conductors, as with compression systems. Dual rated to use with Aluminum or Copper. Double Set Screws maximize contact area and mechanical characteristics. Ball-bottom screws ensure even force distribution in the cable/connector interface.
Brand / LabelHomac
Effective Date20080619
MaterialAluminum
Product NameELECTRICAL CONNECTOR <1000V
SizeBody is 2.750 inch long, 1.642 inch wide, 2.108 inch high.
Surface FinishingTin Plated
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4663 >> Electrical underground bus connector
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
