Homac ABN 4500 AL TRANS SPADE CONN 2-500 4OUT
- MPN: ABN 4500
- UPC: 783786685998
- PPN: T-B-ABN 4500
- UNSPSC: 39121443
CAD
$89.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

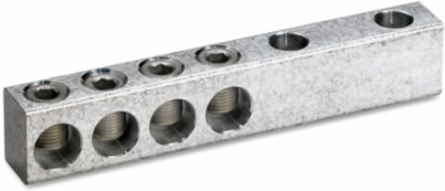

Aluminum Transformer Spade Connectors - ABN Series, cable range 2-500, length 7-5/16 inch, uses boot no. SB 11, outlets 4
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | Pad-Mount Tranformer Connector. For Installations on Standard NEMA Spade Terminals. |
|---|---|
| Connection Type | Mechanical |
| Insulation Material | None |
| Number of Conductors | 4 |
| Product Type | Transformer Spade Connector |
| Special Functions | High Strength Aluminum Alloy maximizes electrical and mechanical problems. Dual-rated to accept Aluminum and Copper Conductors. Ball-Bottom screws ensure maximum conductor contact pressure and break up interstrand oxides. |
| Surface Finishing | Bare |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Material | Aluminum |
| Product Name | ELECTRICAL CONNECTOR <1000V |
| Size | 7-5/16 inch |
| Standards | ANSI C119.4 |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4663 >> Electrical underground bus connector |
|---|
