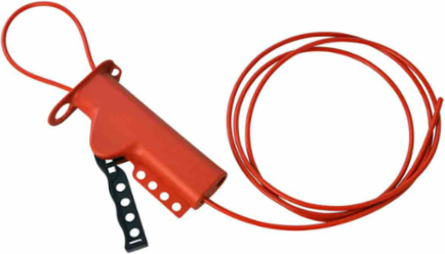

Brady 50943 All Purpose Lockout Device with 8 ft Metal Cable, 152.4 mm H x 32.4 mm W
- MPN: 50943
- UPC: 754473509439
- PPN: BRD-50943
- UNSPSC: 39121905
CAD
$63.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

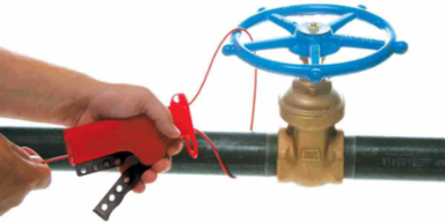

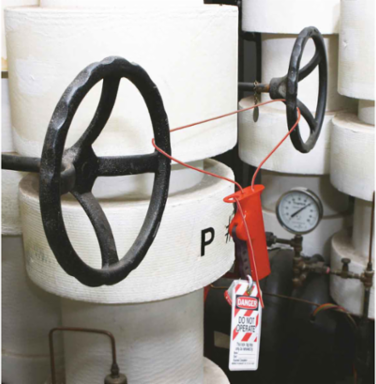

All Purpose Cable Lockouts provide the versatility to lock out several energy isolation points as well as difficult-to-secure isolating devices.
Features
- All Purpose Cable Lockout bodies are made of rugged impact-modified glass-filled nylon for superior chemical, corrosion and temperature resistance
- Device comes complete with a sheathed metal lockout cable attachment
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Cable Finish/Coating | Vinyl |
| Color | Red |
| Maximum Number of Padlocks | 4 |
| Risk Type | Mechanical Risk |
| Type | Pull-Tight |
| Brady Material Number | LOTO-3 |
| Conductive | No |
| SAP B-Number | LOTO-3 |
| Body Depth (mm/cm/m) | 82.6 mm |
| Body Height (mm/cm/m) | 152.4 mm |
| Body Size (mm/cm/m) | 152.4 mm H x 32.4 mm W x 82.6 mm D |
| Body Width (mm/cm/m) | 32.4 mm |
| Cable Diameter (mm/cm/m) | 4.76 mm |
| Cable Length (mm/cm/m) | 2.44 m |
| Dimensions (Metric) | 82.00 mm W x 152.40 mm H x 2.44 m L x 32.40 mm D |
| Maximum Service Temperature °C | 80 °C |
| Maximum Shackle Diameter (mm/cm/m) | 7.14 mm |
| Minimum Service Temperature °C | -35 °C |
| Minimum Shackle Clearance - (mm/cm/m) | 9.53 mm |
| Size - Length (m) | 2.44 m |
| Size - Width (mm) | 82.00 mm |
| Cable Color | Red |
|---|---|
| Cable Included | Yes |
| Enables Industry Compliance | OSHA 1910.147 |
| Primary Noun, Basic Function | Lockout Device |
| Total Qty per Pack | 1 Piece(s) / Pack |
| Adhesive (Y/N) | No |
| Cable Material | Metal |
| Material | Polypropylene |
| Body Depth (in/ft/yd) | 3.25 in |
| Body Height (in/ft/yd) | 6 in |
| Body Size (in/ft/yd) | 6 in H x 1.276 in W x 3.25 in D |
| Body Width (in/ft/yd) | 1.276 in |
| Cable Diameter (in/ft/yd) | 0.1875 in |
| Cable Length (in/ft/yd) | 8 ft |
| Depth (mm/cm/m) | 32.40 mm |
| Height (mm/cm/m) | 152.40 mm |
| Maximum Shackle Diameter (in/ft/yd) | 0.281 in |
| Maximum Wire Diameter (mm/cm/m) | 4.76 mm |
| Minimum Shackle Clearance (in/ft/yd) | 0.375 in |
| Minimum Wire Diameter (mm/cm/m) | 4.76 mm |
| Size - W x H x D (mm) | 82.00 x 152.40 x 32.40 |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
