Aluminum Compression Straight Splice 3 Inch for 1/0 Concentric/Compressed Conductors
Blackburn

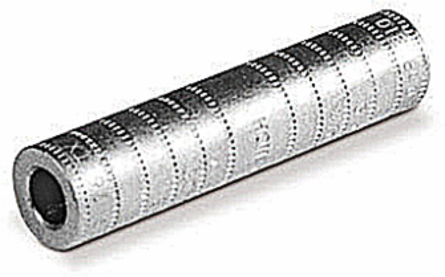

Blackburn SAC 1/0 TN Aluminum Compression Straight Splice 3 Inch for 1/0 Concentric/Compressed Conductors

  • MPN: SAC 1/0 TN
  • UPC: 783786747337
  • PPN: T-B-SAC 1/0 TN

CAD

$19.99

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Tin-Plated Aluminum Compression Straight Splice - Common Die Series, for Aluminum or Copper Conductors, Concentric 1/0, Compressed 1/0, Compact 2/0, Solid 2/0, Installing Dies CSA 22, 5/8, 8A, BG

Features

  • Entire Conductor Range Installed by Six Common Dies to Reduce Die Inventory.
  • Made from Aluminum for High Strength and Conductivity.
  • Solid Center Stop Ensures Proper Cable Insertion.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
  • All Splices Marked with Conductor Sizes and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Documentation & Downloads

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121449 Wire or cable compression splice
Brand Name
Blackburn
Special Features
Solid Center. Dual Rated. Oxide Inhibiting Compound. Marked with Conductor Sizes and Die References.
Standard
ANSI C119.4
Connection
Compression/Crimp
Number Of Conductors
2
Finish
Tin-Plated
IGCC4669 Wire or cable compression splice
TypeAluminum Compression Straight Splice
ApplicationSplices designed for general UnderGround Applications
Size3 inches long
Conductor Range1/0 Concentric or Compressed. 2/0 Compact or Solid
MaterialAluminum
InsulationNone

Packaging

Outer Quantity
100
Weight Uom
0.07 lbs. Each
Outer Dimensions (inches)1x1x1
