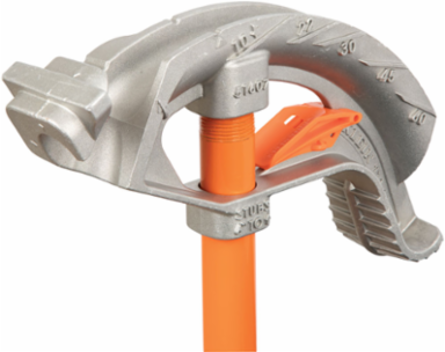

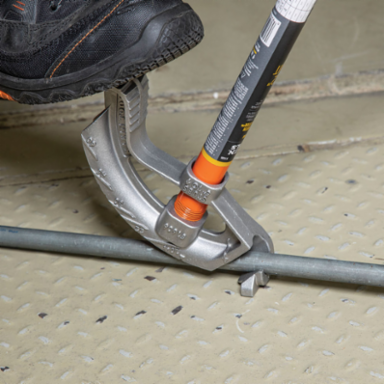

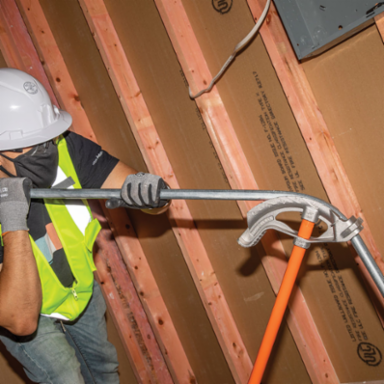

Klein Tools 51607 Aluminum Conduit Bender with Angle Setter™, 3/4-Inch EMT, 44.1-Inch Height
- MPN: 51607
- UPC: 092644516078
- PPN: KLT-51607
- UNSPSC: 27112503
CAD
$72.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

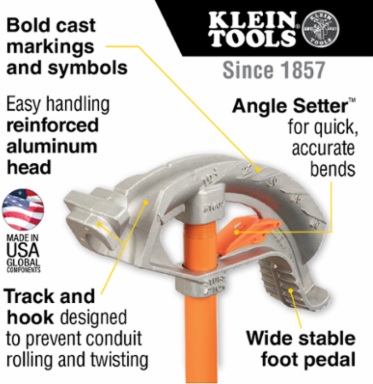

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.
Features

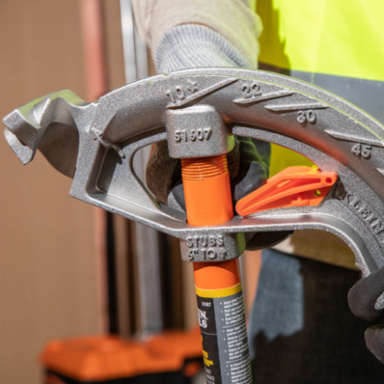

- 3/4-Inch assembled Aluminum Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
- Easy handling aluminum head is reinforced for added strength
- Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

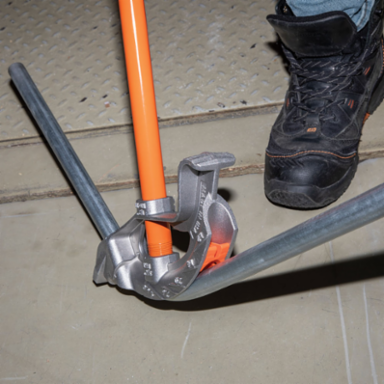

- Wide foot pedal provides excellent stability, leverage, and comfort
- Interior hook surface prevents conduit from rolling or twisting during bends
- Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

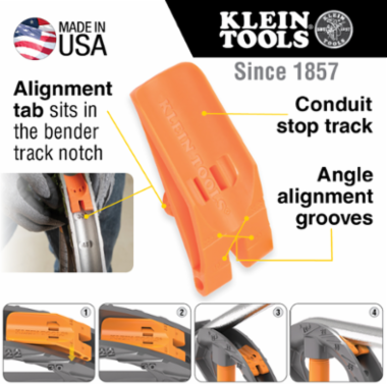

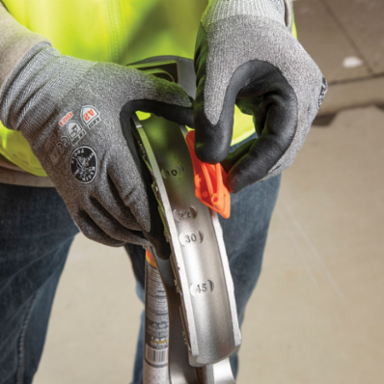

- Compatible with Klein's 3/4-Inch Angle Setter™ (Cat. No. 51612) creates a hard stop for quick, accurate, and consistent bends

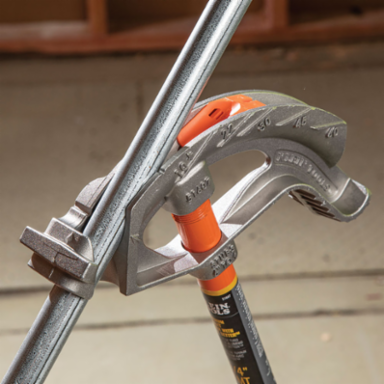

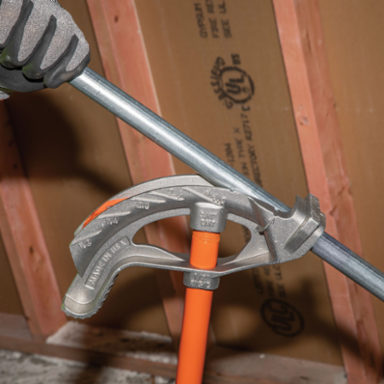

- Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit
- Patent Pending Angle Setter™ Technology
Documentation & Downloads
Specifications
Key Specifications
- Material
- Aluminum
- Type
- Aluminum Conduit Bender
- Rigid/IMC
- 1/2" (1.3 cm)
- Thinwall/EMT
- 3/4" (1.9 cm)
- Marking
- 10°, 22°, 30°, 45°, 60°
- Overall Width (Inch)
- 9.8
- Overall Length (cm)
- 4.8
- Overall Height (cm)
- 112
- Centerline Bend Radius (Inch)
- 5.5
- Weight (lb)
- 4.9
- Overall Length (Inch)
- 1.9
- Width
- 2.5000 in
- Weight
- 5.1200 lbs
Included51427 Aluminum Bender Head, Handle; 51612 Angle Setter™
ApplicationBending Conduit
Conduit Size3/4"
Conduit TypeEMT
Overall Width (cm)24.9
Stub-Up Height (Inch)6
Weight (kg)2.2
Handle Length (cm)96.5
Overall Height (Inch)44.1
Handle Length (Inch)38
Height9.6250 in
Depth39.8750 in
