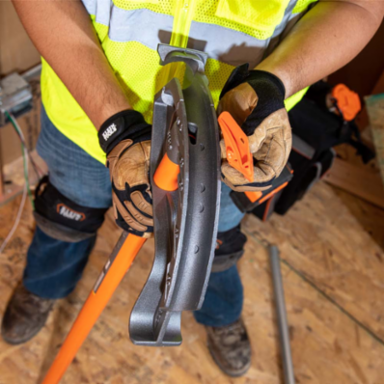

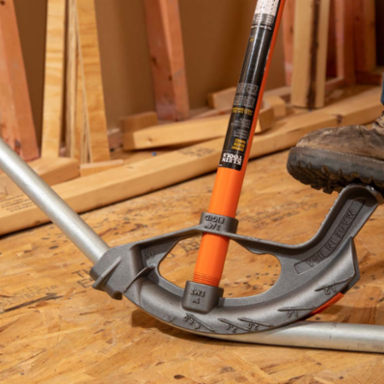

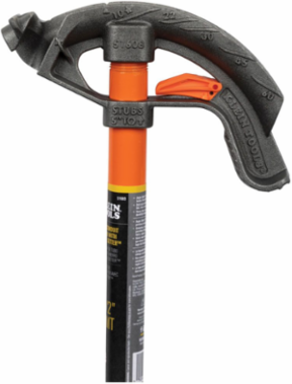

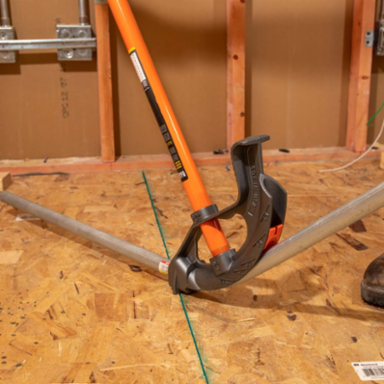

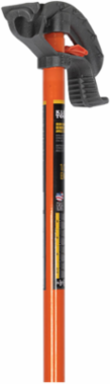

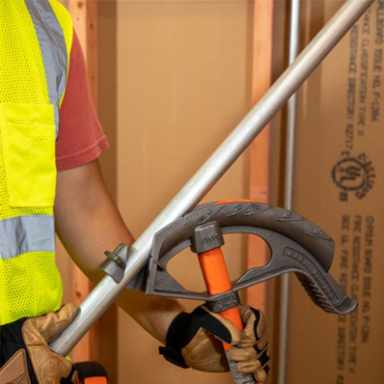

Klein Tools 51604 Iron Conduit Bender 3/4 Inch EMT with Angle SetterTM, Durable Iron, 10 -60 Bends
- MPN: 51604
- UPC: 092644516047
- PPN: KLT-51604
- UNSPSC: 27112503
CAD
$121.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.
Features

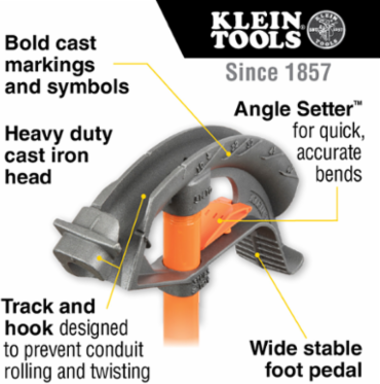

- 3/4-Inch assembled Iron Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
- Heavy duty cast ductile iron has the durability needed on the job site

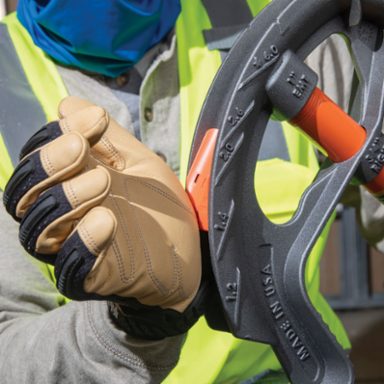

- Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends
- Wide foot pedal provides excellent stability, leverage, and comfort
- Interior hook surface prevents conduit from rolling or twisting during bends
- Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

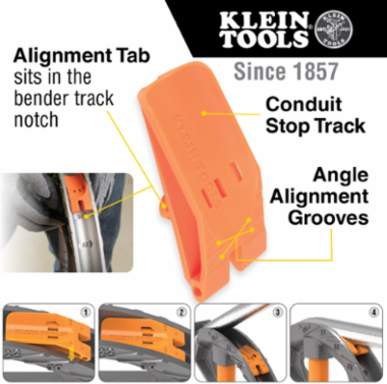

- Features Klein's 3/4-Inch Angle Setter™ (Cat. No. 51612) that creates a hard stop for quick, accurate, and consistent bends
- Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit
- Patent Pending Angle Setter™ Technology
Documentation & Downloads
Specifications
Key Specifications
| Conduit Type | EMT |
|---|---|
| Thinwall/EMT | 3/4" (1.9 cm) |
| Type | Iron Conduit Bender |
| Included | 51609 Bender Head; 51427 Handle; 51612 Angle Setter™ |
| Conduit Size | 3/4" |
| Overall Width (Inch) | 9.8 |
| Overall Length (cm) | 4.8 |
| Overall Height (cm) | 112 |
| Centerline Bend Radius (Inch) | 5.5 |
| Weight (lb) | 6.6 |
| Overall Length (Inch) | 1.9 |
| Width | 9.6250 in |
| Weight | 6.6000 lbs |
| Application | Bending Conduit |
|---|---|
| Material | Iron |
| Marking | 10°, 22°, 30°, 45°, 60° |
| Rigid/IMC | 1/2" (1.3 cm) |
| Overall Width (cm) | 24.9 |
| Stub-Up Height (Inch) | 6 |
| Weight (kg) | 3 |
| Handle Length (cm) | 96.5 |
| Overall Height (Inch) | 44.1 |
| Handle Length (Inch) | 38 |
| Height | 2.5000 in |
| Depth | 39.8750 in |
