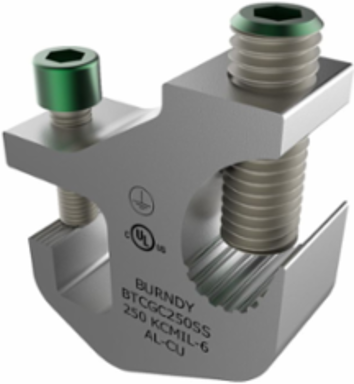

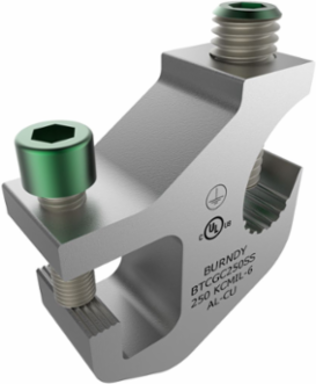

Burndy BTCGC250SS Aluminum Ground Tray Clamp for #6 AWG - 250 Kcmil Conductor, 2.25 Inch x 0.88 Inch
- MPN: BTCGC250SS
- UPC: 621945505957
- PPN: BUR-50087186
- UNSPSC: 39121408
CAD
$65.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Made of aluminum and tin plated, the BTCGC and BTCGCSS cable tray and flange clamps accommodate aluminum or copper conductor #14 AWG through 250 kcmil. SS version is suitable for outdoor applications. The BTCGC clamp may be used with most types of cable tray with an inside or outside flange design or surfaces with flat flanges.
Features
- Tin plated aluminum for durable, long lasting corrosion resistance
- cULus 467 Listed for Grounding and Bonding in US and Canada
- cULus 2703 Listed for solar PV applications in US and Canada
- Accommodates most popular styles of cable tray with inside or outside flange
- Quick and easy installation
- no drilling or special tools required
- Set screw bonds clamp to the cable tray while another set screw securely fastens the grounding conductor to the clamp providing vibration resistance and outstanding pull-out values
- Grounding green hardware as required in Section 8.4 of UL2703
Specifications
Key Specifications
- Country of Origin
- India
- Conductor - AL Str Size Range
- #6 AWG - 250 Kcmil
- Dimensions
- 2.25 in x 0.88 in x 2.43 in
- Length
- 2.25 in
- Application
- Type BTCGC-SS clamps are suitable for outdoor applications and may be used with most types of cable tray with an inside or outside flange design
- Conductor Range (Tap/Secondary)
- #6 AWG - 250 Kcmil AL-CU
- Standard
- cULus Listed
- Conductor Range
- #6 AWG - 250 Kcmil AL-CU
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- Cable Tray Ground Clamp 6AWG – 250kcmil
- Harmonization Code
- 8535908060
- MSDS Flag
- No
- Stock Indicator
- S - Shelf Stock
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 33.910 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 100
- Each - Number of Sub Packs
- 1
- Lowest Level UOM
- Each
- Package Quantity
- 100 EA
- Pallet - GTIN - Package
- 70621945505956
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Allen Key Size1/4 in
Conductor - Copper Str Size Range6 AWG - 250 kcmil
Height2.43 in
Thickness - Flange Plate1/2 in
Conductor Range (Main/Primary)#6 AWG - 250 Kcmil AL-CU
FinishTin Plated
Width0.88 in
Finish TypeTin Plated
Class CodeB41
Freight Class Code16027000
Image Actual Or RepresentativeA
Order Multiple100 EA
Sub Class CodeB41BDFF
Material - HardwareStainless steel
BOX SIZE7.500x10.300x9.750 (in)
Carton - Number of Sub Packs100
Carton - SCC-14 Next Lower Level Sub Pack00621945505957
Case - SCC-14 Next Lower Level Sub Pack30621945505958
Each - Pack DescriptionEach
Package - GTIN - Package30621945505958
Package Weight0.000 lb.
Pallet Height27.000 in
Pallet Weight1672.680 lb.
NAICS Code423610
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus Listed
