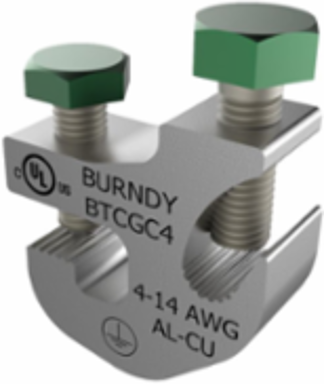

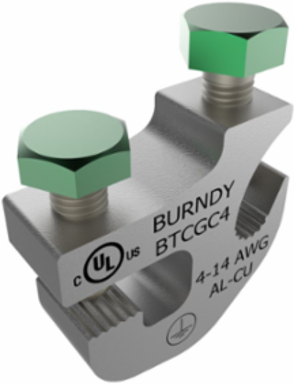

Burndy BTCGC4SS Aluminum Ground Tray Clamp for #14 - #4 AWG Conductors, Tin Plated, 1.35 Inch Length
- MPN: BTCGC4SS
- UPC: 621945546479
- PPN: BUR-50096991
- UNSPSC: 39121408
CAD
$21.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Made of aluminum and tin plated, the BTCGC and BTCGCSS cable tray and flange clamps accommodate aluminum or copper conductor #14 AWG through 250 kcmil. SS version is suitable for outdoor applications. The BTCGC clamp may be used with most types of cable tray with an inside or outside flange design or surfaces with flat flanges.
Features
- Tin plated aluminum for durable, long lasting corrosion resistance
- cULus 467 Listed for Grounding and Bonding in US and Canada
- cULus 2703 Listed for solar PV applications in US and Canada
- Accommodates most popular styles of cable tray with inside or outside flange
- Quick and easy installation
- no drilling or special tools required
- Set screw bonds clamp to the cable tray while another set screw securely fastens the grounding conductor to the clamp providing vibration resistance and outstanding pull-out values
- Grounding green hardware as required in Section 8.4 of UL2703
Specifications
Key Specifications
- Country of Origin
- India
- Conductor - Copper Str Size Range
- 14 AWG - 4 AWG
- Height
- 1.3 in
- Length
- 1.35 in
- Application
- Type BTCGC-SS clamps are suitable for outdoor applications and may be used with most types of cable tray with an inside or outside flange design
- Conductor Range (Tap/Secondary)
- #14 - #4 AWG AL-CU
- Standard
- cULus Listed
- Conductor Range
- #14 - #4 AWG AL-CU
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- Cable Tray Ground Clamp 14AWG – 4AWG
- Harmonization Code
- 8535908060
- MSDS Flag
- No
- Stock Indicator
- S - Shelf Stock
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 35.360 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 400
- Each - Number of Sub Packs
- 1
- Lowest Level UOM
- Each
- Package Height
- 5.400 in
- Package Quantity
- 100 EA
- Package Width
- 6.800 in
- Pallet Height
- 45.800 in
- Pallet Weight
- 1530.120 lb.
- NAICS Code
- 423610
Conductor - AL Str Size Range#14 - #4 AWG
Dimensions1.35 in x 0.5 in x 1.3 in
Hex Size1/4 in
Thickness - Flange Plate1/4 in
Conductor Range (Main/Primary)#14 - #4 AWG AL-CU
FinishTin Plated
Width0.5 in
Finish TypeTin Plated
Class CodeB41
Freight Class Code16027000
Image Actual Or RepresentativeA
Order Multiple100 EA
Sub Class CodeB41BDFF
Material - HardwareStainless steel
BOX SIZE5.900x18.500x15.000 (in)
Carton - Number of Sub Packs400
Carton - SCC-14 Next Lower Level Sub Pack00621945546479
Case - SCC-14 Next Lower Level Sub Pack30621945546470
Each - Pack DescriptionEach
Package - GTIN - Package30621945546470
Package Length9.250 in
Package Weight8.460 lb.
Pallet - GTIN - Package70621945546478
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus Listed
