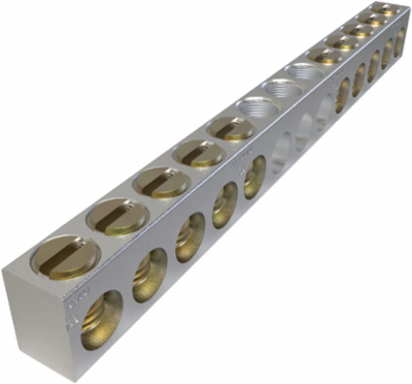

ILSCO NBAS-010-1-B Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 10 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA
- MPN: NBAS-010-1-B
- UPC: 783669005592
- PPN: ILC-NBAS-010-1-B
CAD
$21.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 10 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.437 in | 11.0998 mm |
|---|---|
| Weight | 0.06 lbs |
| Length | 4.104 in |
|---|---|
| Width | 0.312 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 2.052 |
|---|---|
| Drive Type Main | Slotted |
| Height (mm) | 11.0998 |
| Mounting Hole Diameter (IN) | 0.203 |
| Weight BX (LB) | 1.295 |
| Dimension G (mm) | 52.1208 |
|---|---|
| Height BX (IN) | 1.9 |
| Mounting Bolt/Stud Size (mm) | 254 |
| Mounting Hole Position (IN) | 7 |
| Width BX (IN) | 4 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL / CULUS Specification | UL 467 Listed, UL 486A/B Recognized |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 10 |
| Number of Poles | 1 |
| Number of Usable Ports | 10 |
| Mounting Hole Type | Thru |
|---|---|
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 13 |
| Type of Accessory | NBST-2/0 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Steel |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Gold Zinc Chromate |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 4 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 4 Str - 14 Str |
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366900559 |
| Carton Quantity Description | STD PACK QTY 20 |
|---|---|
| NEMA Code | S-588-3 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | #10 |
|---|---|
| Wire Binding Screw Size | 1/4 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 10 - 18 AWG = 20, 2 AWG = 40, 8 AWG = 25, 4 - 6 AWG = 35 |
Color
| Color | Silver |
|---|
