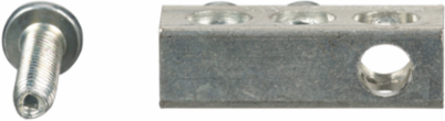

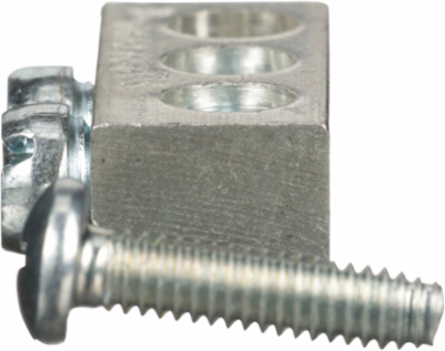

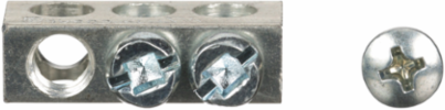

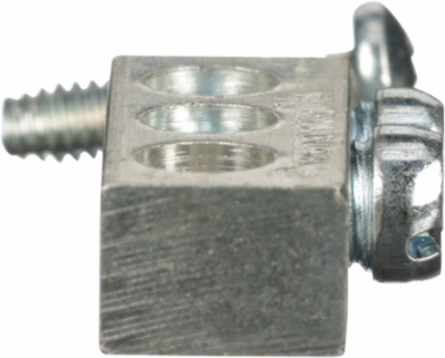

Square D GTK03 Heavy Duty Safety Switch Grounding Kit, 30A/60A, AWG 12 Copper
- MPN: GTK03
- UPC: 785901421818
- PPN: SCH-GTK03
CAD
$22.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Square D heavy duty safety switch grounding bar comes in 30A and 60A. This grounding bar accepts AWG gauges of AWG 12 (CU), AWG 10 (AL), and AWG 4 (AL/CU). This product comes with an 18 month warranty. This heavy duty safety switch grounding bar by Square D has a rated current of 30A and 60A and is rated ofr an AWG gauge of AWG 12, copper
Features
- Engineered exclusively for the Square DTM by Schneider Electric F Series, the GTK03 equipment grounding kit mounts directly inside existing 30A and 60A heavy-duty safety switches. This precise factory fit eliminates field modification guesswork, allowing commercial electricians to quickly execute a clean, compliant field installation without drilling out the enclosure or compromising the NEMA rating.
- Featuring multi-gauge dual-metal mechanical lugs, this grounding kit is rated to accept a wide range of wiring configurations, including 12 AWG copper, 10 AWG aluminum, and 4 AWG copper or aluminum. This versatile architectural footprint ensures you can seamlessly transition from local branch wiring to primary equipment grounds without needing separate, costly adapters or changing your field wiring specifications.
- Fully UL 98 Listed and CSA Certified, the GTK03 safety switch grounding bar satisfies all NEC equipment grounding requirements for 240V commercial and industrial installations. Installing a certified, factory-matched grounding pathway prevents dangerous fault currents from energizing the external sheet metal enclosure, minimizing electrical shock hazards and ensuring your facility passes code inspection on the first try.
- Built with the same legendary durability as Square D heavy-duty safety switches, this grounding bar provides low-resistance conductivity and superior heat dissipation under fault conditions. Designed to outlast standard NEMA KS-1 mechanical endurance requirements, it guarantees long-term grounding integrity inside grueling manufacturing, mechanical room, or processing plant environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 60 A F560 A F7, 30 A F1, 30 A F5, 30 A F7, 60 A F1, 60 A F3
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- 20-20 lbf.in (14 AWG...10 AWG), 20-20 lbf.in (12 AWG...10 AWG)25-25 lbf.in (8 AWG)35-35 lbf.in (6 AWG...4 AWG), 25-25 lbf.in (2 x 14 AWG...2 x 10 AWG), 25-25 lbf.in (2 x 10 AWG...2 x 10 AWG)
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1906
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 12 AWG copper10 AWG aluminium4 AWG copper or aluminium
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Square D
- Series Name
- heavy duty
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 1.054 in
- Package Weight(Lbs)
- 22.68 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product Or Component Typesafety switch grounding bar
ReturnabilityYes
Sustainable PackagingNo
Height Nominal.437 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536698000
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- safety switch grounding bar
Range Of ProductSquare D
ETIM
- ETIM 8
- EC000490
ETIM 9EC000490
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
