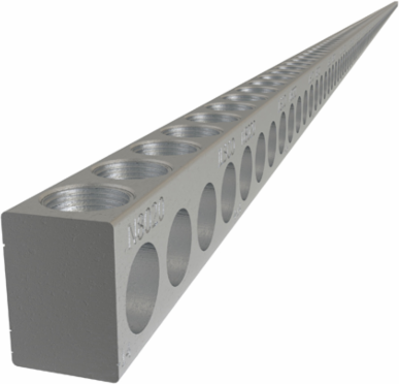

ILSCO NBAS-192-0-A Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 192 Ports, 1 Hole, #10 Bolt, Headed Slot Drive, UL, CSA
- MPN: NBAS-192-0-A
- UPC: 783669005646
- PPN: ILC-NBAS-192-0-A
CAD
$319.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 192 Ports, 1 Hole, #10 Bolt, Headed Slot Drive, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.547 in | 13.8938 mm |
|---|---|
| Weight | 1.81723901211269 lbs |
| Length | 60 in | 1524 mm |
|---|---|
| Width | 0.312 in | 7.9248 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Drive Type Main | Slotted |
|---|---|
| Height (mm) | 13.8938 |
| Mounting Bolt/Stud Size (mm) | 254 |
| Width BX (IN) | 2.5 |
| Height BX (IN) | 2.5 |
|---|---|
| Length (mm) | 1524 |
| Weight BX (LB) | 9.446 |
| Width (mm) | 7.9248 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL / CULUS Specification | UL 467 Listed, UL 486A/B Recognized |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 192 |
| Number of Ports / Wireways | 192 |
| Type of Accessory | NBST-2/0 |
| Mounting Hole Type | Thru |
|---|---|
| Number of Poles | 1 |
| Number of Usable Ports | 192 |
Material and Finish
| Conductor Material | Copper, Aluminum |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Steel |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 4 Str - 14 Str |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 4 Str - 14 Str |
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range AL Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366900564 |
| Carton Quantity Description | STD PACK QTY 15 |
|---|---|
| NEMA Code | S-588-3 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | #10 |
|---|---|
| Wire Binding Screw Size | 1/4 |
| Number of Wire Binding Screws per Port | 1 |
|---|
Color
| Color | Silver |
|---|
