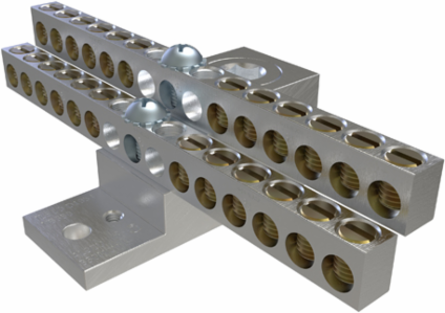

Ilsco NB-350-24 Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 24 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA
Ilsco NB-350-24 Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 24 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA
- MPN: NB-350-24
- UPC: 0783669698701
- PPN: ILC-NB-350-24
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$187.63/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Dimensions
- Dimension G (IN)
- 0.234
- Drive Size Main
- 3/8
- Drive Type Tap
- Slotted
- Height (mm)
- 38.4302
- Mounting Bolt/Stud Size (mm)
- 26212.8
- Mounting Hole Diameter (mm)
- 5.5626
- Tang Length (mm)
- 19.2278
- Tang Thickness (mm)
- 4.7498
- Tang Width (mm)
- 25.4
- Width BX (IN)
- 5
Dimension G (mm)5.9436
Drive Type MainInternal Hex
Height BX (IN)2.25
Length (mm)64.2874
Mounting Hole Diameter (IN)0.219
Tang Length (IN)0.757
Tang Thickness (IN)0.187
Tang Width (IN)1
Weight BX (LB)1.5121
Width (mm)120.142
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Recognized
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 4
- Number of Poles
- 1
- Replacement Part(s)
- E-153
Mounting Hole TypeTap
Number of Mounting Holes2
Number of Ports Tap24
Type of AccessoryR-16, NBST-2/0
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Aluminum
- Wire Binding Hardware Material
- Steel
Connector FinishTin
Wire Binding Hardware FinishGold Zinc Chromate
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 4 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 350 kcmil - 6 Str
Conductor Range AL Stranded (Primary, run, main, line)350 kcmil - 6 Str
Conductor Range CU Solid (Secondary, tap, load)10 Sol - 14 Sol
Conductor Range CU Stranded (Secondary, tap, load)4 Str - 14 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366969870
Carton Quantity DescriptionSTD PACK QTY 1
NEMA CodeS-588-3
Specifications
- Height
- 1.513 in | 38.4302 mm
- Weight
- 0.612 lbs
Length2.531 in | 64.2874 mm
Width4.73 in | 120.142 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10-32
- Wire Binding Screw Size
- 1/4
Number of Wire Binding Screws per Port1
Wire Binding Torque10 - 14 AWG = 35, 4 - 6 AWG = 45, 8 AWG = 40
Color
- Color
- Silver
