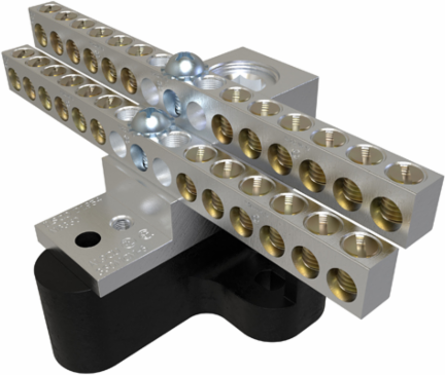

ILSCO NB-350-24-W/R16 Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 24 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA, Includes R-16 Mounting Block
- MPN: NB-350-24-W/R16
- UPC: 783669698695
- PPN: ILC-NB-350-24-W/R16
CAD
$232.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 24 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA, Includes R-16 Mounting Block
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.513 in | 63.8302 mm
- Weight
- 1.063 lbs
Length2.797 in | 71.0438 mm
Width4.73 in | 120.142 mm
Voltage
- Voltage Rating
- 600 V
Dimensions
- Dimension G (IN)
- 0.375
- Drive Size Main
- 3/8
- Drive Type Tap
- Slotted
- Height (mm)
- 63.8302
- Mounting Bolt/Stud Size (mm)
- 26212.8
- Mounting Hole Diameter (mm)
- 7.1628
- Mounting Hole Spacing (mm)
- 43.0276
- Width BX (IN)
- 3.875
Dimension G (mm)9.525
Drive Type MainInternal Hex
Height BX (IN)3.125
Length (mm)71.0438
Mounting Hole Diameter (IN)0.282
Mounting Hole Spacing (IN)1.694
Weight BX (LB)1.196
Width (mm)120.142
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Recognized
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 5
- Number of Poles
- 1
- Replacement Part(s)
- R-16, E-153
Mounting Hole TypeTap
Number of Mounting Holes2
Number of Ports Tap24
Type of AccessoryNBST-2/0
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
- Wire Binding Hardware Material
- Aluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 4 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 350 kcmil - 6 Str
Conductor Range AL Stranded (Primary, run, main, line)350 kcmil - 6 Str
Conductor Range CU Solid (Secondary, tap, load)10 Sol - 14 Sol
Conductor Range CU Stranded (Secondary, tap, load)4 Str - 14 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366969869
Carton Quantity DescriptionSTD PACK QTY 1
NEMA CodeS-588-3
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10-32
- Wire Binding Screw Size
- 3/4
Number of Wire Binding Screws per Port1
Wire Binding Torque375
Color
- Color
- Silver
