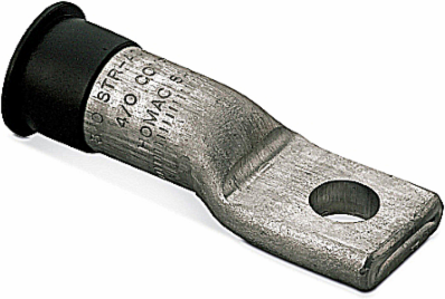

Homac SASL 4/0-48 TN Aluminum One Hole NEMA Stacking Lug
- MPN: SASL 4/0-48 TN
- UPC: 783786749348
- PPN: T-B-SASL 4/0-48 TN
CAD
$70.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tin-Plated Aluminum Compression One-Hole Stacking Lug for Aluminum and Copper Conductors- Common Die Series, Concentric 4/0 and 250, Compressed 4/0 and 250, Compact 250 and 300, ACSR 4/0, Installing Dies TX,76,249,840,845,11A,CSA 24TX,76,249,840,845,11A,CSA 24
Features
- Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made from Aluminum for High Strength and Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
- Stacking Lugs Double Terminal Capacity of Transformer Spades and Buses to Save Money.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121448 Wire or cable compression connector
- Brand Name
- Homac
- Special Features
- Marked with Conductor Sizes and Die References. Prefilled with Oxide Inhibiting Compound.
- Standard
- ANSI C119.4
- Conductor Range
- Concentric 4/0 and 250, Compressed 4/0 and 250, Compact 250 and 300, ACSR 4/0
- Finish
- Tin Plated
- Bolt Size
- 1/2 inch
IGCC4668 Wire or cable compression connector
TypeAluminum One Hole NEMA Stacking Lug
ApplicationDesigned for general Applications and for Installation of Homac 125 Series Insulated Buses.
Size3-21/64 inch long
MaterialAluminum
InsulationNone
Packaging
- Outer Quantity
- 50
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
