Color-Keyed

Color-Keyed MD1600 Copper Disconnects

Copper Disconnects
  • MPN: MD1600
  • PPN: T-B-MD1600

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$296.54/ EA

Description

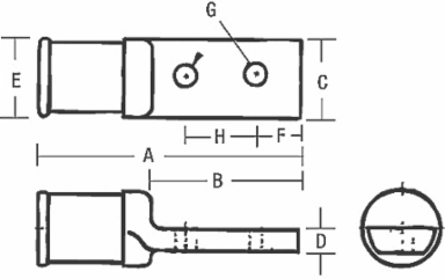

T&B Method Traction Motor Disconnect Lug for Diesel-Electric Locomotives, Cable Size 100/24, Bolt Hole 3/8 Inch on 1 Inch Centers, Die Code 107

Features

  • Application Tools: TBM15I, 21940

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121447 Wire terminal disconnect
Brand Name
Color-Keyed
Voltage Rating
600V
Finish
Tin-Plated
IGCC4667 Wire terminal disconnect
TypeCopper Disconnects
MaterialCopper

Packaging

Inner Quantity
5
Outer Quantity
50
Weight Uom
84 lbs. per 100
Inner Dimensions (inches)4x4x3
Outer Dimensions (inches)21.5x8.5x3.5
