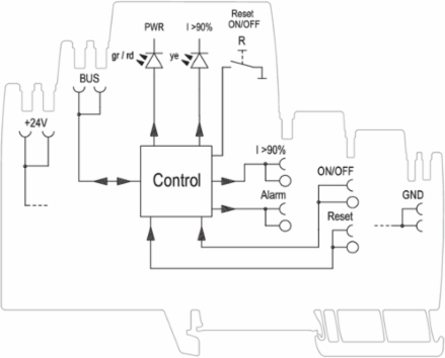

Weidmuller 2081900000 AMG CM Control Module, 24V DC, 12.2mm Width, 2 Terminals, IP20
- MPN: 2081900000
- PPN: WDM-2081900000
CAD
$59.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control module, 24 V DC
Documentation & Downloads
Specifications
General Data
- Conformal coating
- No
- Operating temperature
- -25 °C...55 °C
- Power loss, nominal load
- 452 mW
- Relay to activate the output
- No
- Surge voltage category
- III
Control inputsON/ OFF, Reset
Power loss, idling336 mW
Protection degreeIP20
Surge protection input, output, busSuppressor diode
Probability Of Failure
- MTTF
- 410 Years
Signalling
- LED green
- Operation (failure-free), Early warning: I Out > 90% I Rated (flashing)
- Transistor output, positive-switching
- Pre-warning, Alarm
Red LEDLoad monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing)
Connection Data (Input)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , min.
- 0.14 mm²
- Conductor cross-section, rigid , min.
- 0.14 mm²
- Screwdriver blade
- 0.6 x 3.5
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, rigid , max.2.5 mm²
Number of terminals2 (Reset / ON)
Wire connection cross section, flexible (input), max.2.5 mm²
Approvals
- Approvals
- CE, CULUS, EAC, TUEV
- UL File Number Search
- E258476
ROHSConform
Dimensions And Weights
- Width
- 12.2 mm
- Height
- 125 mm
- Depth
- 96.5 mm
- Net weight
- 56 g
Width (inches)0.48 inch
Height (inches)4.921 inch
Depth (inches)3.799 inch
Input
- Current consumption (full load)
- 225 mA
- DC input voltage range
- 18…30 V DC
- Rated input voltage
- 24 V DC
- max. admissible residual ripple at the input
- 100 mVpp
Current consumption (idle)25 mA
Input fuse (internal)No
Surge protectionSuppressor diode
Classifications
- ETIM 6.0
- EC002057
- eClass 9.0
- 27-37-10-16
- eClass 10.0
- 27-37-10-16
ETIM 7.0EC002057
eClass 9.127-37-10-16
Output
- Connection system
- PUSH IN
Surge protectionSuppressor diode
Connection Data (Signal)
- Wire connection cross-section, flexible (signal), max.
- 2.5 mm²
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Surge voltage category
- III
Connection Data (Output)
- Conductor cross-section, AWG/kcmil , max.
- 12
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Connection system
- PUSH IN
- Screwdriver blade
- 0.6 x 3.5
Conductor cross-section, AWG/kcmil , min.26
Conductor cross-section, flexible , min.0.14 mm²
Conductor cross-section, rigid , min.0.14 mm²
Number of terminals2 (I< / Alarm)
Temperatures
- Operating temperature, max.
- 55 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...55 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E258476
