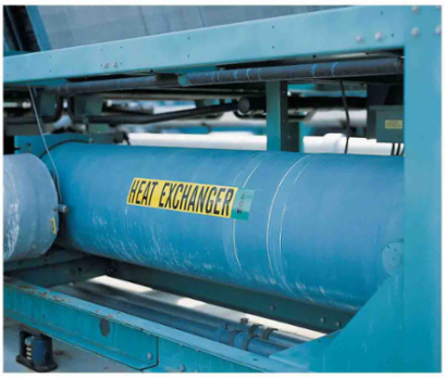

Brady 90343 Ammonia Pipe Marker HEAT EXCHANGER 4 Inch H x 24 Inch W Fits Pipes 8 Inch Dia. or Larger
- MPN: 90343
- UPC: 754473903435
- PPN: BRD-90343
- UNSPSC: 55121737
CAD
$9.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Use IIAR Component Markers to label components of an ammonia refrigeration system with the name of the equipment and designated pressure level.
Features
- Component name is printed on a safety yellow background
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
- Average outdoor durability 8-10 years
Documentation & Downloads
Specifications
Key Specifications
| Applications | Pipe and Valve Marking |
|---|---|
| Cards or Sheets per Pack | 1 |
| Combined IIAR Legend | HEAT EXCHANGER LOW |
| Enables Industry Compliance | ANSI A13.1-2007 |
| IIAR Legend | HEAT EXCHANGER |
| Includes | (1) Pipemarker |
| Pipe Marker Mounting Style | Self-Adhesive |
| Primary Noun, Basic Function | Pipe Marker |
| Quantity per Card or Sheet | 1 |
| Adhesive Type | Permanent Acrylic |
| Indoor or Outdoor Use | Outdoor Use |
| Material | Vinyl |
| SAP B-Number | B-946 |
| Dimensions | 4 in H x 24 in W |
| Dimensions 2 | 4 in H x 24 in W |
| Height (mm/cm/m) | 101.6 mm |
| Maximum Service Temperature °F | 180 °F |
| Minimum Application Temperature °F | 0 °F |
| Minimum Service Temperature °C | -40 °C |
| Overall Size | Fits Pipes 8" Dia. or larger |
| Sign Size-General | 4 in x 24 in |
| Thickness (mm/cm/m) | 0.102 mm |
| Width (mm/cm/m) | 60.96 cm |
| Brand Name | Brady® |
|---|---|
| Color | Black/Green on Yellow |
| Compatible Surface Types | General |
| Finish | Gloss |
| IIAR Pressure Level | LOW |
| Language | English |
| Pre-Printed Areas on Label | IIAR Components |
| Printer and Label Applications | General Identification; Pipe Marker |
| Reflective Type | Non-Reflective |
| Brady Material Number | B-946 |
| Label Properties | Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; Weather-Resistant |
| Average Outdoor Durability | 8 to 10 Years |
| Dimensions (Metric) | 101.6 mm H |
| Height (in/ft/yd) | 4 in |
| Maximum Service Temperature °C | 82 °C |
| Minimum Application Temperature °C | -18 °C |
| Minimum Outside Pipe Diameter (in/ft/yd) | 8 in |
| Minimum Service Temperature °F | -40 °F |
| Roll/Tape Size (in/ft/yd) | 4 in H x 24 in W |
| Thickness (in/ft/yd) | 0.004 in |
| Width (in/ft/yd) | 24 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
| Contains CA PROP 65 Substance | No |
|---|---|
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
