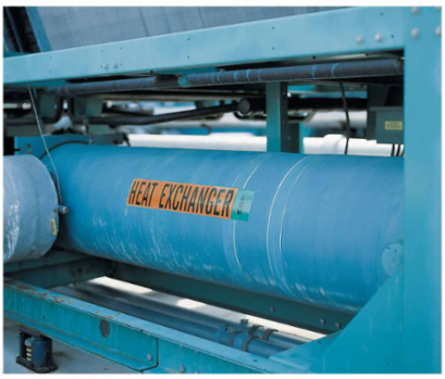

Brady 145834 IIAR Pipe Marker for Heat Exchangers, 4 Inch x 24 Inch, Vinyl, Outdoor Use
- MPN: 145834
- UPC: 754473546229
- PPN: BRD-145834
- UNSPSC: 55121737
CAD
$10.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Use IIAR Component Markers to label components of an ammonia refrigeration system with the name of the equipment and designated pressure level.
Features
- Pipe markers comply with IIAR Bulletin 114, which modifies the color scheme from yellow to orange to meet ANSI's A13.1 (2007) revised standard.
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
- Average outdoor durability 8-10 years
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Cards or Sheets per Pack
- 1
- Combined IIAR Legend
- HEAT EXCHANGER
- Enables Industry Compliance
- IIAR Standard - Bulletin 114
- IIAR Legend
- HEAT EXCHANGER
- Pipe Marker Mounting Style
- Self-Adhesive
- Printer and Label Applications
- General Identification; Pipe Marker
- Reflective Type
- Non-Reflective
- Brady Material Number
- B-946
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Material
- Vinyl
- SAP B-Number
- B-946
- Dimensions
- 4 in H x 24 in W
- Dimensions 2
- 4 in H x 24 in W
- Height (mm/cm/m)
- 101.6 mm
- Maximum Service Temperature °F
- 180 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Outside Pipe Diameter (mm/cm/m)
- 203.2 mm
- Minimum Service Temperature °F
- -40 °F
- Roll/Tape Size (in/ft/yd)
- 4 in H x 24 in W
- Thickness (in/ft/yd)
- 0.004 in
- Width (in/ft/yd)
- 24 in
Brand NameBrady®
ColorBlack/Green on Orange
Compatible Surface TypesGeneral
FinishGloss
LanguageEnglish
Primary Noun, Basic FunctionPipe Marker
Quantity per Card or Sheet1
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
LaminatedNot Laminated
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Weather-Resistant
Average Outdoor Durability8 to 10 Years
Dimensions (Metric)101.6 mm H
Height (in/ft/yd)4 in
Maximum Service Temperature °C82 °C
Minimum Application Temperature °C-18 °C
Minimum Outside Pipe Diameter (in/ft/yd)8 in
Minimum Service Temperature °C-40 °C
Overall SizeFits Pipes 8" Dia. or larger
Sign Size-General4 in x 24 in
Thickness (mm/cm/m)0.102 mm
Width (mm/cm/m)60.96 cm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
EU RoHS CompliantYes
