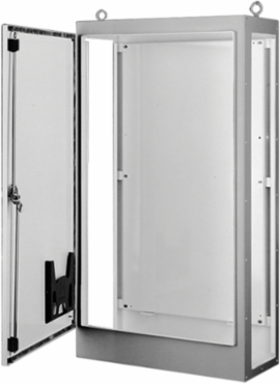

nVent Hoffman AMOD847724FTC Modular Disconnect Enclosure 84.12x78.00x24.12 Inch, Steel, NEMA Type 12

Description

Features

• One-Door Disconnect Enclosure (left side open); universal cutout on right flange provides mounting for most disconnect operators by using operator adapters (*See footnote)
• Right side is closed since disconnect operator cannot be obscured by a door; primary door is hinged on left; defeater on primary door requires a screwdriver to open; primary door activates mechanical interlock which prevents secondary doors from being opened first; doors may be closed in any order; interlock is furnished
• Two-Door Disconnect Enclosure (left side open); universal cutout on right flange provides mounting for most disconnect operators by using operator adapters (*See footnote)
• Defeater on primary door requires a screwdriver to open; primary door activates mechanical interlock which prevents secondary doors from being opened first; doors may be closed in any order
• Right side is closed; primary door is right-hand door; both doors hinged on left.
• Removable centerpost permits easy panel installation; interlock is furnished
• One-Door secondary Enclosure (both sides open); door hinged on left; interlock is furnished
• Two-Doorsecondary Enclosure (both sides open); right-hand door hinged on right and left-hand door hinged on left; interlock is furnished
• Removable centerpost permits easy panel installation
• Seams are continuously welded and ground smooth
• Body stiffeners in larger enclosures for extra rigidity
• Body flange trough excludes liquids and contaminants
• Heavy-duty lifting eyes anchor into reinforced top
• Concealed, easy-to-remove hinges
• Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
• Data pocket is high-impact thermoplastic
• Oil-resistant door gasket
• Panel supports
• Removable .127-in. thick steel panels mount on collar studs
• Bonding provision on door
• Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
• Interlock rods are furnished with enclosures; purchase gasket kits and end plate separately
• Models available with panel include painted panel; conductive panel sold separately
