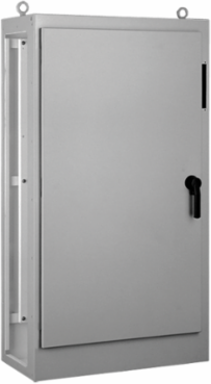

Nvent Hoffman AMOD84X4024FTCLP Modular Disconnect Enclosure Type 12, 84.12x40.25x24.12 Inch, Steel, Gray
Nvent Hoffman AMOD84X4024FTCLP Modular Disconnect Enclosure Type 12, 84.12x40.25x24.12 Inch, Steel, Gray
- MPN: AMOD84X4024FTCLP
- UPC: 783510136260
- PPN: HOF-AMOD84X4024FTCLP
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty enclosure that can be bayed together designed for indoor industrial use. This Modular Disconnect Enclosure LP Type 12, AMOD84X4024FTCLP item measures 84.12x40.25x24.12 inches with material of Steel colored Gray.
Features
- One-Door Disconnect Enclosure (left side open); universal cutout on right flange provides mounting for most disconnect operators by using operator adapters (*See footnote)
- Right side is closed since disconnect operator cannot be obscured by a door; master door is hinged on left; defeater on master door requires a screwdriver to open; master door activates mechanical interlock which prevents slave doors from being opened first; doors may be closed in any order; interlock is furnished
- Two-Door Disconnect Enclosure (left side open); universal cutout on right flange provides mounting for most disconnect operators by using operator adapters (*See footnote)
- Defeater on master door requires a screwdriver to open; master door activates mechanical interlock which prevents slave doors from being opened first; doors may be closed in any order
- Right side is closed; master door is right-hand door; both doors hinged on left.
- Removable centerpost permits easy panel installation; interlock is furnished
- One-Door Slave Enclosure (both sides open); door hinged on left; interlock is furnished
- Two-Door Slave Enclosure (both sides open); right-hand door hinged on right and left-hand door hinged on left; interlock is furnished
- Removable centerpost permits easy panel installation
- Seams are continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Panel supports
- Removable .127-in. thick steel panels mount on collar studs
- Bonding provision on door
- Mechanical interlock standard on each enclosure; parts required to connect interlock system between adjacent enclosures are provided
- Interlock rods are furnished with enclosures; purchase gasket kits and end plate separately
- Models available with panel include painted panel; conductive panel sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,022
- Protection Rating
- NEMA Type 12
- Color
- Gray
- Thickness (T)
- 3.04
- NEMA Rating
- 12 Indoor, dust-resistant
- Panel Included
- No
- Size
- 84.12x40.25x24.12 in
Height (H)2,137
Depth (D)613
FinishPowder Coated
Color CodeANSI 61
IP RatingIP65
Weight557
MaterialSteel
