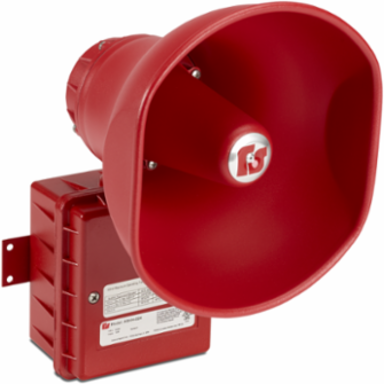

Federal Signal ASHH-024 Amplified Speaker, 15W, Supervised, Hazardous Location, UL and cUL CID2, UL Fire, 24VDC, Red
Federal Signal ASHH-024 Amplified Speaker, 15W, Supervised, Hazardous Location, UL and cUL CID2, UL Fire, 24VDC, Red
- MPN: ASHH-024
- UPC: 782979213864
- PPN: FDS-ASHH-024
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2856.15/ EA
Description
Models ASHH and ASUH Hazardous Location Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. Both amplified speakers are compatible with fire alarm, voice evacuation, suppression supervised control panels and power boosters.These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the audio output of the EVAC panel.The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a die-cast aluminum housing. Dust and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with red powder coat paint.
Features
- 15 watt (ASHH) or 30 watt (ASUH)
- 24VDC
- Four wire supervisable power circuit
- Reliable, solid-state circuitry
- Digital signal amplification
- Fused input and output
- Built-in gain control
- External mounting tabs
- Type 4X, IP66 enclosure
- IP69K compliant
- UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
- UL Fire Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Red
- dBa 1 Meter
- 124
- Availability
- Ships in 10 business days
- Operating Current Amps
- 0.7
- Operating Voltage
- 24 Vdc
- Audible Signals Watts
- 15
- Height
- 12.4 in, 31.496 cm
Weight4.5 lbs
Certification ListingCSFM, UL, UL Fire
dBa 10 Ft114
Mount TypeSurface
Operating Temp.-40˚ to +150˚F (-40˚ to +66˚C)
Watts15
Depth12.4 in, 31.496 cm
Width7.9 in, 20.066 cm
