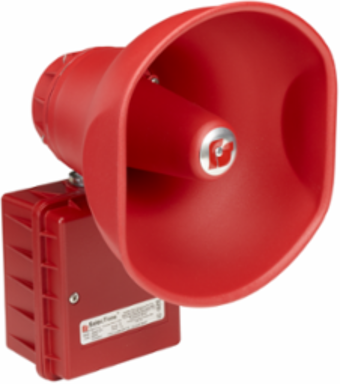

Federal Signal 304GC-024-CN-R SelecTone 15W Amplified Speaker, Supervised, UL and cUL, ULC Fire Listed, 24VDC, Red
Federal Signal 304GC-024-CN-R SelecTone 15W Amplified Speaker, Supervised, UL and cUL, ULC Fire Listed, 24VDC, Red
- MPN: 304GC-024-CN-R
- UPC: 782979232476
- PPN: FDS-304GC-024-CN-R
- UNSPSC: 46171602
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2281.66/ EA
Description
Models 304GC, 314GC, 304GC-CN, and 314GC-CN Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. These amplified speakers can broadcast tones generated by a tone card installed into the speaker (the plug-in 32-tone UTM*) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the Vrms of the EVAC panel.Both amplified speakers are compatible with fire alarm and suppression supervised control panels and power boosters.The rugged construction and high output of these speakers make it ideal for use in harsh environments with high ambient noise levels. Both models feature an internal gain control for adjustment to the suit area. *ULC Fire Listed Models (-CN models) can only be used with a UTM tone card
Features
- Available in 24VDC
- Four wire supervisable power circuit
- Capable of producing tones or voice messages
- Built in gain control, 304GC adjustable between 0 dBa to 108 dBa @ 10' (0 dBa to 118 dBa @1m) 314GC adjustable between 0 dBa to 112 dBa @ 10' (0 dBa to 122 dBa @ 1m)
- Digital signal amplification
- Fused input and output
- Cast aluminum housing, spun aluminum protector
- Indoor/outdoor use
- Type 3R, IP54 enclosure
- CSFM Approved
- 304GC-CN/314GC-CN is ULC Fire Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Red
- dBa 1 Meter
- 118
- Availability
- Ships in 10 business days
- Operating Current Amps
- 0.7 @ 24VDC Nominal/1.0 @ 24VDC Regulated (16-33VDC)
- Operating Voltage
- 24 Vdc
- Audible Signals Body Color
- Red
- Audible Signals Watts
- 15
- Height
- 12.4 in, 31.496 cm
Weight4.5 lbs
Certification ListingULC Fire
dBa 10 Ft108
Mount TypeSurface
Operating Temp.-40° to +150°F (-40° to +66°C)
Watts15
Audible Signals Certification ListingULC Fire Listed
Depth12.4 in, 31.496 cm
Width7.9 in, 20.066 cm
