CMC AMS1/0 Aluminum One-Hole Terminal Lugs
- MPN: AMS1/0
- UPC: 192663118281
- PPN: BUR-U55700367
CAD
$18.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

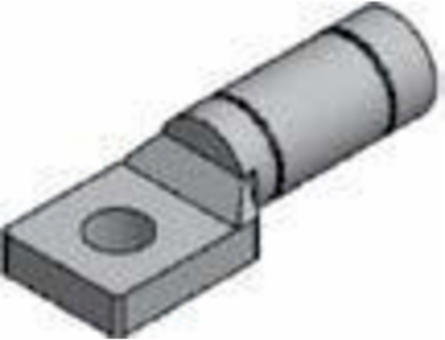

Aluminum One-Hole Terminal Lugs
Features
- Standard mounting hole diameter is .562” for 1/2” bolts
- The end wall within the cable socket of this design is solid and pressure tigh
- Connectors are pre-filled and plugged with electrical joint compound
- Marked with catalog number, conductor size and die reference
- Meets performance requirements of ANSI C119.4
Specifications
Key Specifications
| Conductor - ACSR Cmpt Size | 1/0 AWG-2/0 AWG |
|---|---|
| Conductor - Copper Str Compact Size | 1/0 AWG-2/0 AWG |
| Depth | 0.56 in |
| Length | 3.25 in |
| Class Code | C05 |
| Harmonization Code | 8535908020 |
| Sub Class Code | C05 |
| Material | Aluminum |
| BOX SIZE | (in) |
| Case - SCC-14 Next Lower Level Sub Pack | 30192663118282 |
| Package Quantity | 100 EA |
| NAICS Code | 3359319101 |
| Conductor - ACSR Str Size | 1/0 AWG |
|---|---|
| Conductor - Copper Str Size | 1/0 AWG |
| Industry Standard(s) | ANSI C119.4 |
| Width | 0.91 in |
| Freight Class Code | 06120000 |
| Image Actual Or Representative | A |
| Die Size | EEI 11A;Burndy WK840;Burndy 249;Kearney 840;T&B TX;T&B 76 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00192663118281 |
| Package - GTIN - Package | 30192663118282 |
| Package Weight | 0.123 lb. |
