Bussman

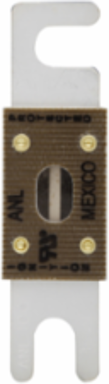

Bussman ANL-125 ANL Fuse 125A 3.18 Inch x 0.3 Inch Current-limiting Fast Acting

ANL Fuse 125A 3.18 Inch x 0.3 Inch Current-limiting Fast Acting
ANL Fuse 125A 3.18 Inch x 0.3 Inch Current-limiting Fast Acting
ANL Fuse 125A 3.18 Inch x 0.3 Inch Current-limiting Fast Acting
  • MPN: ANL-125
  • UPC: 051712107518
  • PPN: BUS-ANL-125

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$63.57/ EA

Specifications

Specifications

Height
.88 IN
Width
.3 IN
Type
Current-limiting, Fast Acting, Non Time Delay
Application
Aviation, fork lifts, marine
Amperage Rating
125A
Connection
Blade end X blade end
Length3.18 IN
Weight.3 LB
Special FeaturesSmall footprint
Voltage Rating32 Vac, 80 Vdc
Interrupt Rating6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
Fuse IndicatorNon Indicating
