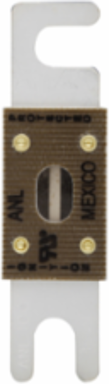

Bussmann ANL-300 ANL Fuse 300A, 6 kAIC, 3.18 Inch Length, Circuit Limiting
- MPN: ANL-300
- UPC: 051712706063
- PPN: BUS-ANL-300
CAD
$50.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ANL Fuse 300A, 6 kAIC, 3.18 Inch Length, Circuit Limiting
Features
- Engineered with a fast-acting, non-time-delay element, this 300A fuse reacts instantly to severe short circuits and overcurrent spikes. By clearing faults rapidly, it prevents catastrophic damage to expensive solid-state equipment, making it the ideal choice for secondary branch circuit protection, heavy-duty inverters, and large DC marine systems.
- Featuring a robust voltage rating of 80V DC and 32V AC alongside a 2,700-amp interrupting capacity, this fuse is purpose-built to handle high-energy electrical systems. It provides reliable overcurrent mitigation for modern 48V lift truck battery networks, large solar energy storage arrays, and high-amperage telecommunications power plants without the risk of sustaining a dangerous electrical arc.
- Equipped with a tough, transparent center viewing window, this fuse allows operators to safely inspect the internal element at a glance. This visual confirmation eliminates the need for time-consuming multimeter troubleshooting during a critical system outage, accelerating diagnostic recovery times and safely getting your commercial power distribution back online.
Documentation & Downloads
Specifications
Additional
- Amperage
- 300A
- Voltage Rating
- 32 Vac, 80 Vdc
- Length
- 3.18 in
- Height
- 0.88 in
- Connection
- Blade end x blade end
- Fuse Indicator
- Non-indicating
- Special Features
- Small footprint
Interrupt Rating6 kAIC at 32 Vac, 2.7 kAIC at 80 Vdc
TypeCircuit limiting, non-time delay
Width0.3 in
Weight.3 lb
MountingStud
ApplicationAviation, fork lifts, marine
ComplianceRoHS Compliant
